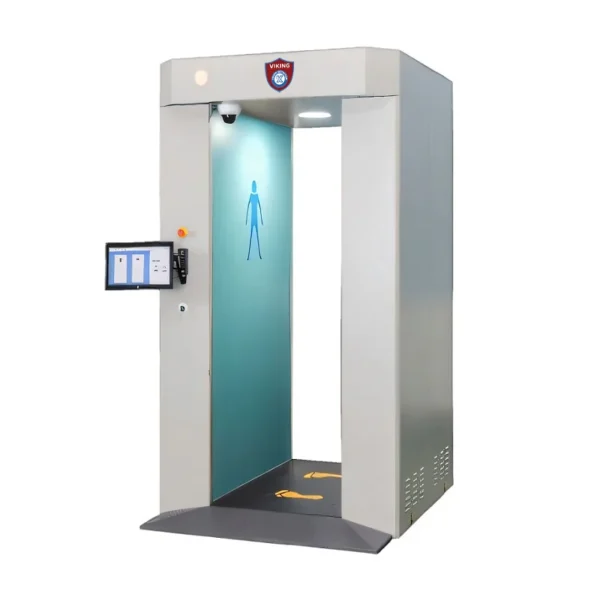

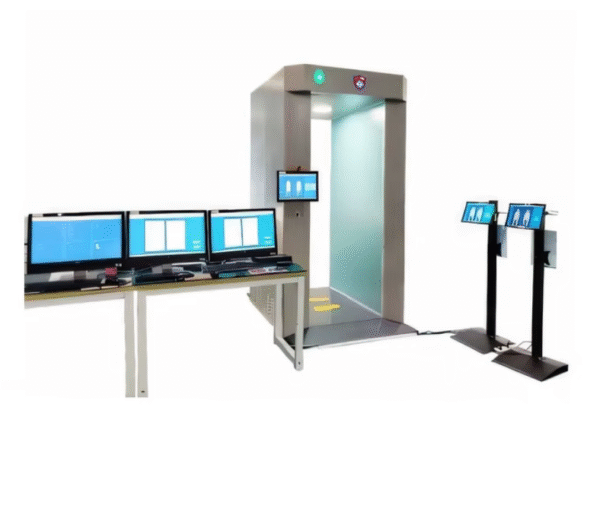

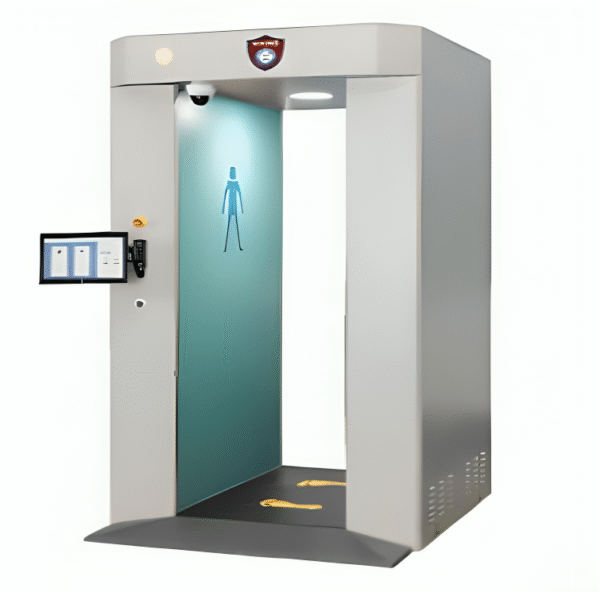

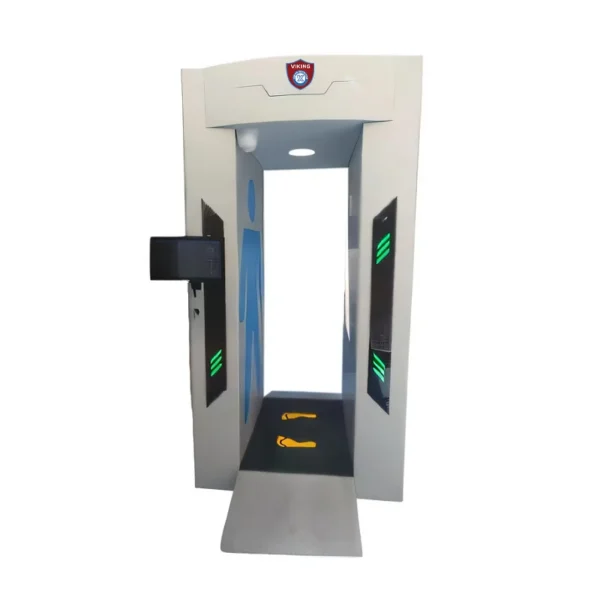

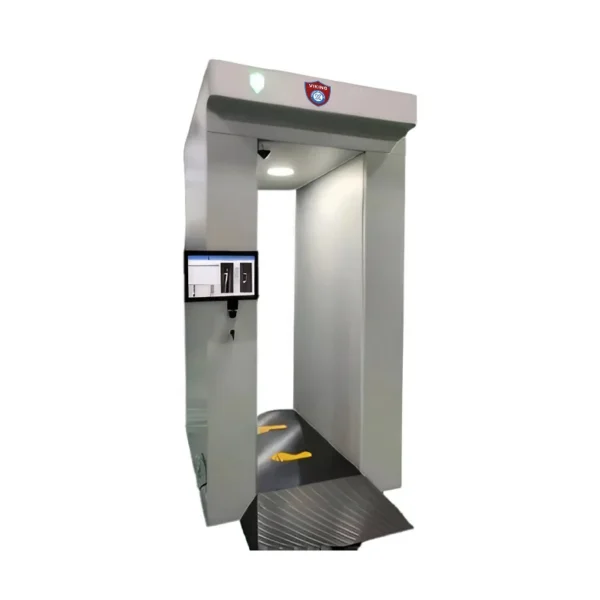

Industrial Full Body Security Scanner with Camera

R89,000.00

Product Features

  1. High Reliability
    Utilizes non-contact, high-efficiency methods to effectively detect concealed prohibited items—both metallic and non-metallic—hidden between the human body and clothing.

  2. Efficient and Fast
    Each inspection takes less than 3 seconds. In coordination with multiple external manual inspection stations, the system can process up to 600 people per hour.

  3. Easy to Operate
    One-click operation allows for quick and simple use, enabling security personnel to grasp the process easily. The equipment features a modular design for straightforward installation and maintenance.

  4. Easy Installation
    The device has a compact structure with minimal volume, weight, and footprint. It can be transported as a single unit and installed in a modular manner.

  5. High Security
    For general body screening, the equipment does not emit any ionizing radiation, whether in operation or standby mode, ensuring user safety.

  6. Intelligent Technology
    Equipped with advanced artificial intelligence, the system uses automatic target recognition algorithms to detect prohibited items carried on the body. It also features intelligent alert systems, collaborative networking, and an upgradable database of forbidden items. Manual and automatic modes work together to provide comprehensive public safety.

  7. Privacy Protection
    Non-contact inspection that does not display any bodily details in the detection results, fully preserving the privacy of individuals being screened.

  8. Enhanced Security Screening Experience
    The equipment has a passage width of 800 mm, allowing wheelchair accessibility. It supports a hands-down inspection posture. The ramp height is less than 70 mm, minimizing the risk of tripping.

Additional information

Condition

New

Applicable Industries

Airports & Transportation Hubs, Government Buildings & Border Control
Power Plants & Industrial Sites, High-Security Manufacturing (e.g., electronics, pharma)
Hospitals & Biosecurity Zones, Stadiums, Arenas & Event Venues, Pubs, Factory, Shopping Center

Brand

Viking

Technical principles

VW-MW1221

scanning method

planar array vertical scanning

Inspection mode

Non-contact and non-ionizing radiation scanning; the person being inspected completes the imaging process with their arms naturally hanging down

Scan area

Height: 0.1m-2m, Width: 1.2m1987mm(h)*700mm(w)*395mm(d)

Image accuracy

Line Resolution: ≤2mm, Spatial Resolution: ≤5mm

Single detection time

3 seconds, i.e., throughput [100, 600] people per hour

Automatic alarm

Line Resolution: ≤2mm, Spatial Resolution: ≤5mmAC100V~240V 50/60Hz

Working mode

It has automatic mode and remote image analysis mode, and can be interconnected with multiple machines

Core functionality

Has various image processing, user, log, and system management functions

external dimensions

2400mm (H) ×1300mm (W) ×1300mm (D)

passage dimensions

2100mm (H) ×800mm (W)

weight

680 KG

Warranty

2 Years

After-sales service provided

Online support/ on site support / parts replacement

Delivery

Free ( T&Cs Apply )
