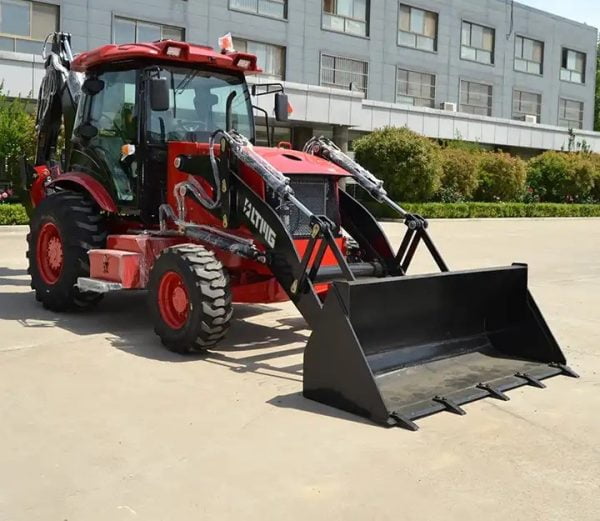

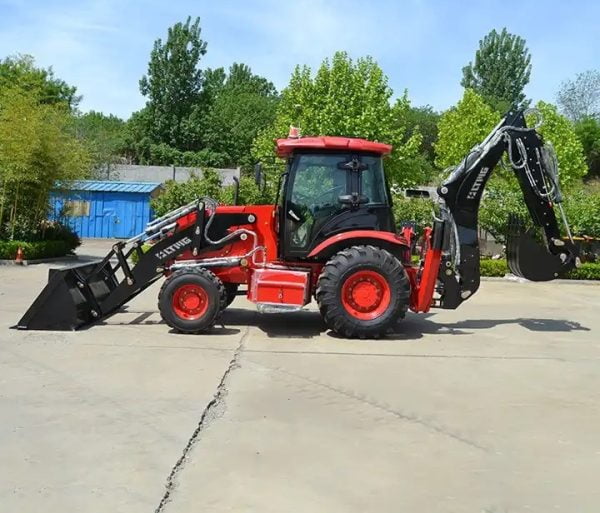

2.5 Ton 4×4 Backhoe Excavator And Loader, Ltmg388

2.5 Ton 4×4 Backhoe Excavator And Loader, Ltmg388
2.5 Ton 4×4 Backhoe Excavator And Loader, Ltmg388
2.5 Ton 4×4 Backhoe Excavator And Loader, Ltmg388

R375,800.00

SKU: RNE6LUR8 Categories: ,

Additional information

Model

LTMG388
Condition

New
Type

Backhoe Loader
Applicable Industries

Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Energy & Mining
Machine Weight

8200 kg
Hydraulic Pump Brand

Eaton
Hydraulic Cylinder Brand

Eaton
Hydraulic Valve Brand

Eaton
Warranty of core components

2 Years
Core Components

Engine, Gear, Motor, Gearbox, Hydraulic Pump, Hydraulic Cylinder, Hydraulic Valve.
Total length bucket at ground

6450±80mm
Total width

2650±20mm
Bucket width

2620mm
Total height cab in top

3120±10mm
Total height digging boom top

3940 ±20mm
Wheel base

2335±10 mm
Wheel tread

2139 ±10mm
Load main technical parameter

—————-
Rated load

2500KG
Operating weight

10050kg
Rated bucket capacity

1.2m³
Max.Dumping height (41°dumping angle）

3050±50 mm
Dumping distance

870±20 mm
Turning radius

Tires out side
5750±50mm
Digging main technical parameters

——————-
Rated digging bucket capacity

0.3m³
Max.Digging depth

3820±20 mm
Max.Digging radius

5345±20mm
Max.Loading height

3740±20mm
Max.Digging force

5100kgf
Max.Digging height

5470 ±20mm
Lifting forceat Max.Digging radius

1220kg
Max. Digging depth with arm extended (telescopic arm)

4970±20 mm
Max. Loading height when boom is extended (telescopic arm)

4983±20mm
Max. Digging height with arm extended (telescopic arm)

6680±20mm
Engine

————–
Engine model

YC4A105Z-T20
Cooling type

Water cooling
Rated power

75 (kW)
Displacement

4.8(L)
Rated speed

2200(r/min)
Max.Torque

400(N.M)
Manufacturer

YUCHAI
Transmission

—————
Hydraulic torque convertor

Model
315
Coolingway
Pressured oil circle
Gearbox

Model
28
Type
Mechanically Operated Hydraulic Synchronized Shift
Driving axles

Model
WZL100
Gear shift

Forward 4 Backward 4
Speed (F/R)km/h

Forward1) – 5 km/h
Forward2) – 10 km/h
Forward3- 18 km/h
Forward4)- 32 km/h
Backward1) – 5 km/h
Backward2) – 10 km/h
Backward3) – 18 km/h
Backward4) – 32 km/h
Tyres model

16.9-28
Hydraulic system

—————
Working pump displacement

63ml/r
Working pump pressure

20Mpa
Diverter model

BZZ5-250
Digging attachments(hydraulic hammer)

————-
Rod diameter (mm)

68-70
Working pressure (Mpa)

11/14
Impact frequency

500-900
Flow scope( L/min)

25-45
kinetic energy (KN)

49
Oil capacity

————–
Hydraulic oil tank

125
Fuel tank

125
After-sales Service Provided

Online support/ on site support / parts replacement
After Sale Support Provided

Yes
Warranty

2 Years

Please fill out the form below to send an inquiry about this product.
