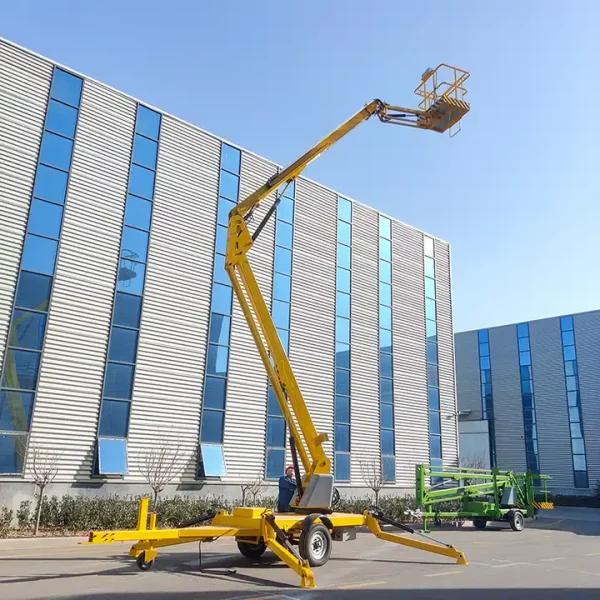

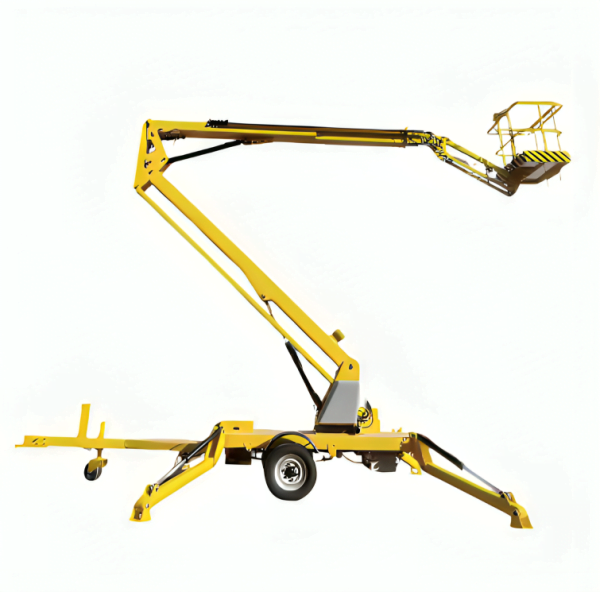

Name: 24M Articulated Boom Lift, Working height Maximum 24M
SKU: RN6UXBS
Availability: InStock

R560,100.00

Additional information

Condition	Model
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction work, Other
Measurements	……………………….
Working height maximum	m 24
Platform height maximum	m 20
Horizontal reach maximum	m 10.8
Up Stover clearance maximum	m 9.2
(LxW ) Platform dimensions(LxW)	1.53×0.76
Length(stowed)	m 8.1
Width(stowed)	m 2.38
Height(stowed)	m 2.38
Wheelbase	m 2.6
Ground clearance(center)	m 0.3
Productivity	……………………….
Lift capacity maximum	kg 210
Platform occupancy maximum	2
Platform rotation	±80°
Vertical jib rotation	140°
Turntable rotation	355°
Turntable tailswing	m 0.33
Drive speed (stowed)	km/h 5
Drive speed (raised)	km/h 0.8
Gradeability	25%
Working slope maximum	3°/3°
Turning radius(inside)	m 2.98
Turning radius(outside)	m 4.62
Drive & steer mode	4x2x2
Tire type	33×12-20
Power	……………………….
Battery	48V/420Ah
Pump electric motor power	5
Drive electric motor power	kW 6.5×2
Control voltage	24V DC
Charger	48V/40A
Weight	8080
Core components	Motor, Engine, Battery
Warranty of core components	1 Year
After-sales service provided	Online support/ on site support / parts replacement
Showroom Location	Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
Delivery	Free
