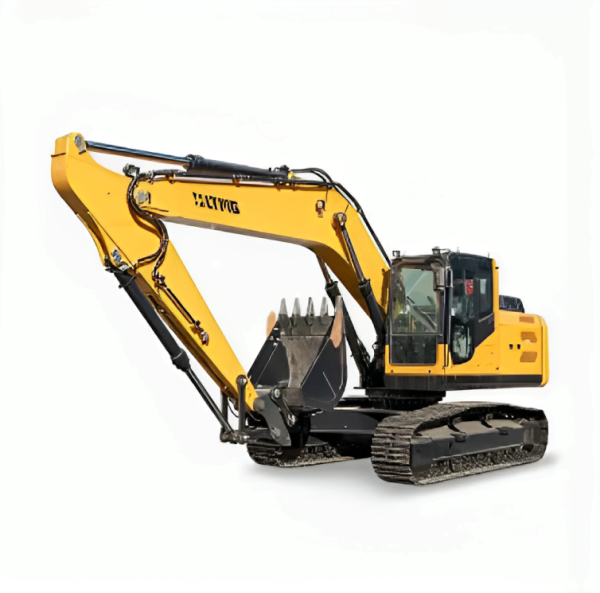

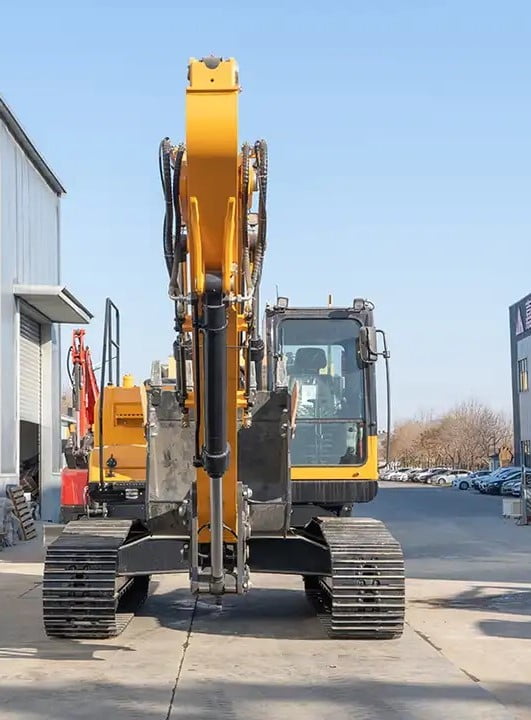

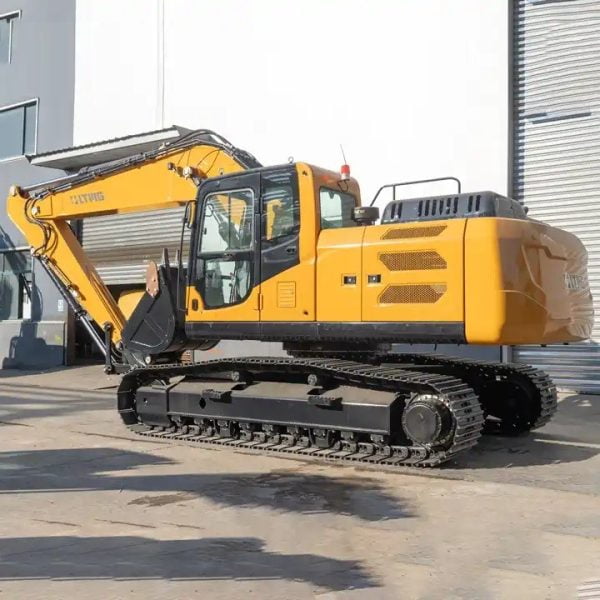

Name: 23 ton Crawler Excavator, Digger, km/h 4.2/3.8km/h Traveling Speed(high/low) Model LMR18
SKU: RNS5N36
Availability: InStock

R1,447,470.00

SKU: RNS5N36 Categories: Construction Equipment, Excavators

Additional information

Model	LMR18
Condition	New
Type	Excavator / Digger
Applicable Industries	Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining
Hydraulic Cylinder Brand	WEICHAI
Hydraulic Pump Brand	WEICHAI
Hydraulic Valve Brand	WEICHAI
Warranty of core components	2 Years
Core Components	Engine, Gear, Motor, Gearbox, Hydraulic Pump, Hydraulic Cylinder, Hydraulic Valve.
Moving Type	Crawler Excavator
After Sale Support Provided	Yes
After-sales Service Provided	Online support/ on site support / parts replacement
Machine Weight	23000 kg
Engine Model	Cummins QSB7 124KW
Engine Type	Water cooled, Turbo
No. of cylinder	6
Swing Speed	r/min 0-13
Traveling Speed(high/low)	km/H 4.2/3.8km/h
Grade ability	° 30%
Hydraulic system pressure	Mpa 34
Overall Length	mm 9565
Overall Width	mm 2990
Overall Height	mm 3000
Mini Ground clearance	mm 490
Track width	mm 600
Swing radius at tail	Mm 2880
Bucket Capacity	m3 1.1
Max. Digging Radius	mm 9936
Max. Digging Depth	mm 6550
Max. Digging Height	mm 9680
Max. Dumping Height	mm 6730
Warranty	2 Years
