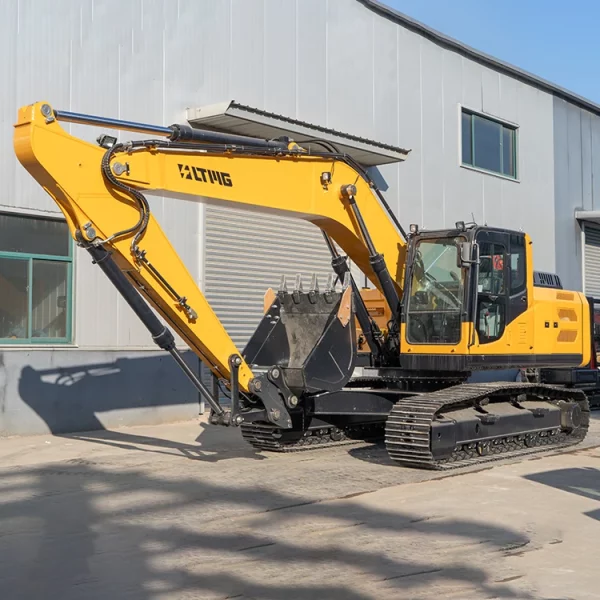

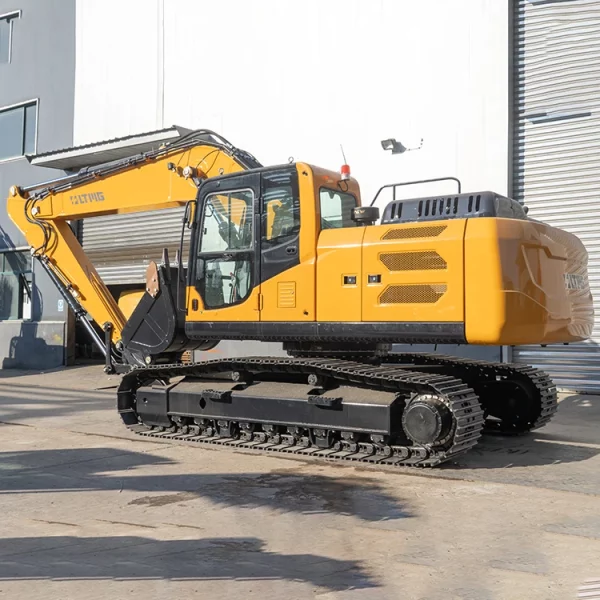

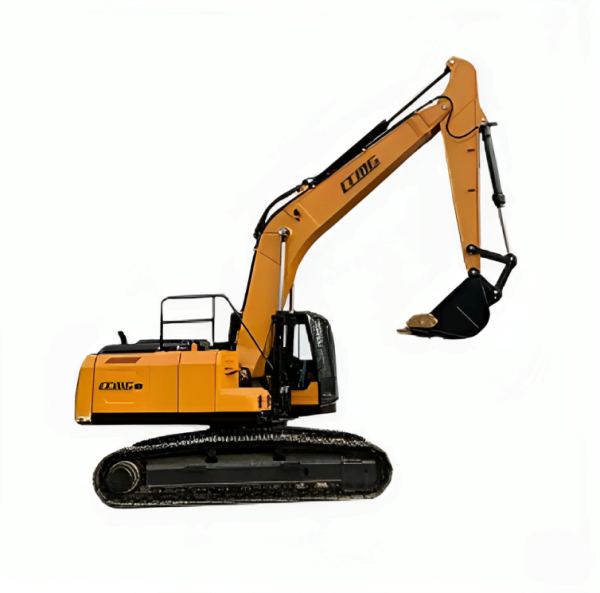

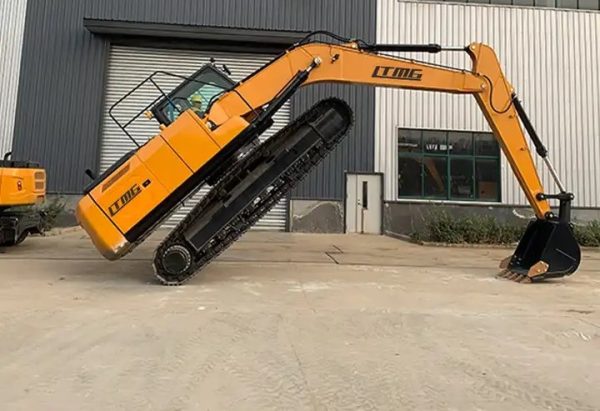

Name: 23 Ton Digger-Excavator Hydraulic Crawler, Model KTA17-312
SKU: RNE155O
Availability: InStock

R837,000.00

Additional information

Model	KTA17-312
Condition	New
Type	Excavator
Applicable Industries	Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining
Hydraulic Cylinder Brand	YUNNEI
Hydraulic Pump Brand	YUNNEI
Hydraulic Valve Brand	YUNNEI
Warranty of core components	2 Years
Core Components	Engine, Gear, Motor, Gearbox, Hydraulic Pump, Hydraulic Cylinder, Hydraulic Valve.
Moving Type	Crawler Excavator
After Sale Support Provided	Yes
After-sales Service Provided	Online support/ on site support / parts replacement
Machine Weight	23000 kg
Engine Model	Cummins QSB7 124KW/2050rpm
Engine Brand	Cummins
Engine Type	Turbo, Electric injection, water cooled, with air intercooler
No. of cylinder	6
Swing Speed	r/min 0-13
Traveling Speed	km/H 3.8-4.2
Grade ability	30°
Hydraulic system working pressure Mpa	34
Overall Length	mm 9565
Overall Width	mm 2990
Overall Height	mm 3000
Track width	mm 600
Distance from swing center to tail	Mm 2880
Operation Weight	kg 23000
Bucket Capacity	m3 1.1
Max. Digging Radius	mm 9936
Max. Digging Depth	mm 6550
Max. Digging Height	mm 9680
Max. Dumping Height	mm 6730
Boom Length	mm 5700
Arm Length	mm 2920
Track Height	Mm 950
Track shoe thickness	Mm 100
Warranty	2 Years
