HomeRenco IndustrialSpiral Dough Mixers25kg Spiral Dough Mixer – Compact Industrial Dough Kneader for Bakeries

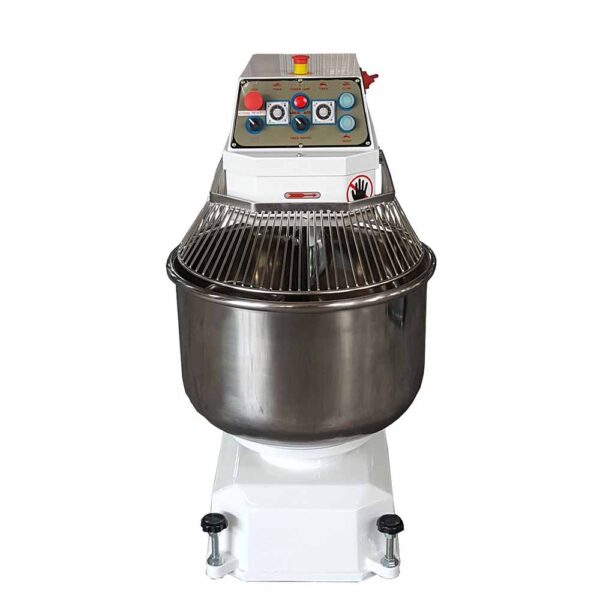

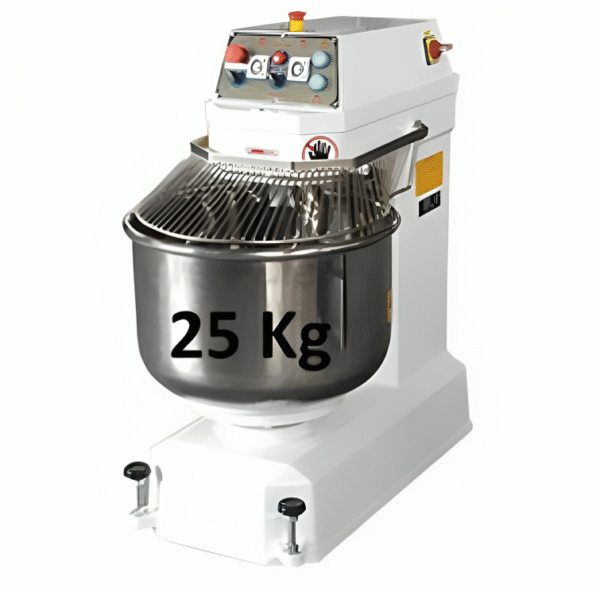

25kg Spiral Dough Mixer – Compact Industrial Dough Kneader for Bakeries

R39,500.00

The 25kg Spiral Dough Mixer is a compact yet robust machine designed for small to medium-sized bakeries and food production environments. With a reversible stainless steel bowl, dual-speed spiral hook, and independent motor system, this mixer ensures efficient and consistent dough development while occupying minimal floor space. Ideal for artisan bakeries, cafés, restaurants, and pizza kitchens.

SKU: NR9149N5-1 Category: Tags: ,

Additional information

Condition

New

Applicable Industry

Commercial Bakeries
Industrial Food Processing Plants
Central Kitchens
Hotel and Hospitality Industry
Catering Services
Pizza Production Facilities
Frozen Dough Manufacturers
Institutional Food Services
Supermarket Bakeries
Pastry and Confectionery Units

Bowl Capacity

52–55 Litres (Approx. 55–58 Quarts)

Flour Capacity

25 kg

Dough Output Capacity

Up to 38 kg (depending on hydration ratio)

Dough Type Compatibility

Suitable for soft, medium, and hard dough

Mixing Time

6–10 minutes per batch (typical)

Hourly Output

Approx. 100–150 kg of dough per hour

Mixing Speed (1st/2nd)

Spiral: 90 / 180 RPM • Bowl: 10 / 20 RPM (typical)

Speed Control

2 fixed speeds (low/high); optional VFD system available

⚙️ Mechanical & Structural Construction

_________________________________________________________

Machine Structure

Welded steel frame with corrosion-resistant powder coating

Outer Panels

Powder-coated steel or optional stainless steel cladding

Mixing Bowl Material

SUS304 food-grade stainless steel, polished finish

Spiral Hook Material

Forged stainless steel (SUS304), high torque design

Spiral Shaft Diameter

~50–60 mm

Bowl Drive System

Reversible belt drive with programmable direction control

Transmission Type

Belt-driven system with precision pulley alignment

Bearings

Double-sealed industrial bearings

Vibration Dampers

4 anti-slip rubber feet for stability and noise reduction

🔌 Electrical & Motor Systems

____________________________________________________________

Spiral Mixing Motor

3 HP (2.25 kW) industrial-grade motor

Bowl Drive Motor

0.75 HP (0.55 kW) geared motor

Power Supply

3-phase, 220V / 380V / 415V, 50/60Hz

Control Panel

IP65-rated waterproof membrane panel

Timers

Dual mechanical or digital timers for each speed

Overload Protection

Thermal relay with automatic cut-off

Power Consumption

Approx. 2.5–4 kWh (per hour, average load)

Safety & Compliance

________________________________________________________

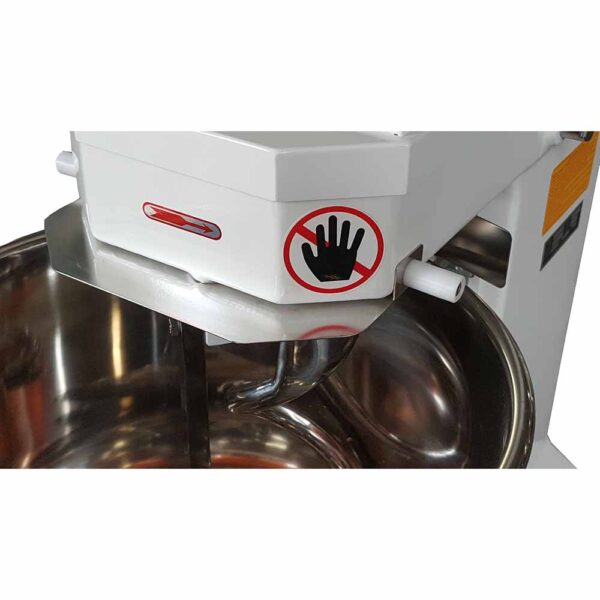

Safety Guard

Stainless steel safety grid with magnetic interlock

Emergency Stop

E-stop button on front panel

Thermal Protection

Built-in overheating protection for both motors

Ingress Protection

IP44 machine body • IP65 control panel

Net Weight

375 kg

Noise Level

≤ 68 dB

🔧 Cleaning & Maintenance

______________________________________________________________

Cleaning Method

Wipe with damp cloth and food-safe detergent only

Water Resistance

Splash-proof; not pressure-washable

Lubrication Points

Factory-lubricated gearbox; includes gear oil for initial setup

Service Access

Rear motor panel and side panels accessible for maintenance

Maintenance Schedule

Check belts and grease every 6 months

Standard Extra Accessories Included

_____________________________________________________

Mixing Bowl

1 Stainless Steel (SUS304)

Spiral Hook

1 Stainless Steel (SUS304)

Breaker Bar

1 Stainless Steel (SUS304)

Bowl Safety Guard

1 Stainless Steel

Rubber Feet Pads

4 Heavy-duty industrial rubber

Lubricant Pack

3 40 ml food-grade gear oil

Operation Manual

1 English (Printed or PDF)

Core components

Spiral Mixing Arm
Mixing Bowl
Bowl Drive Motor
Spiral Arm Motor
Gearbox/Transmission System
Electrical Control Panel
Safety Guard Interlock System

Warranty on core components

1 year

Showroom Location

Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia

After-sales service provided

Online support/ on site support / parts replacement

Delivery

Free ( T&Cs Apply )
