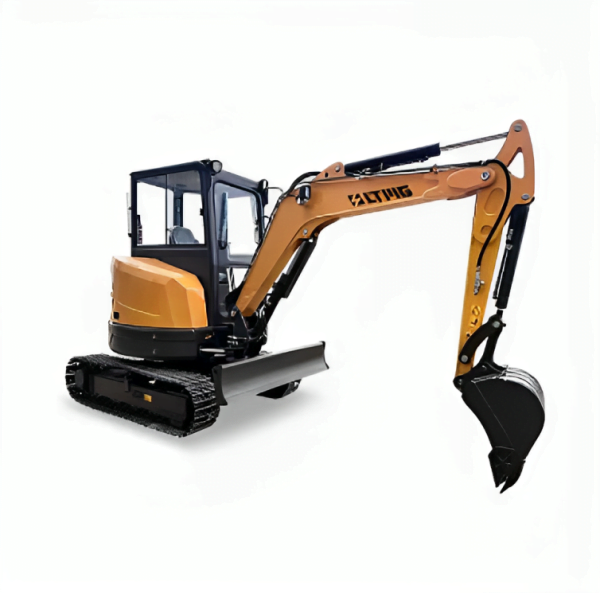

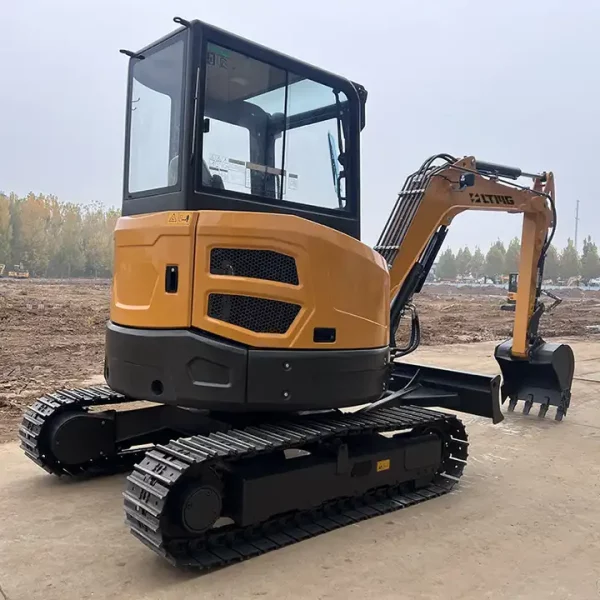

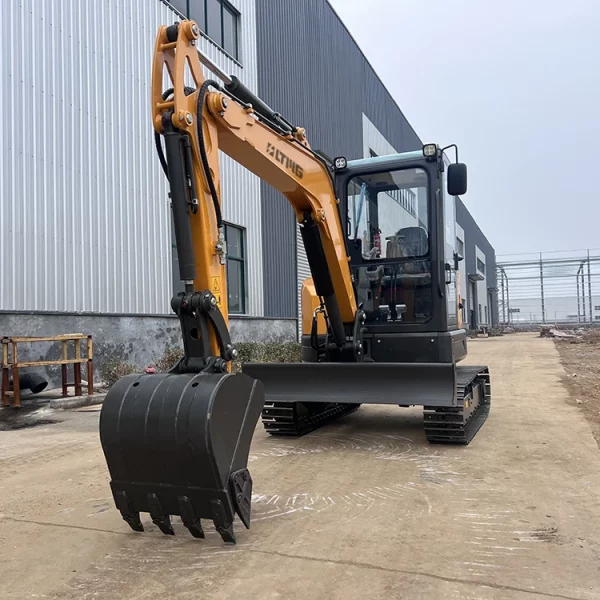

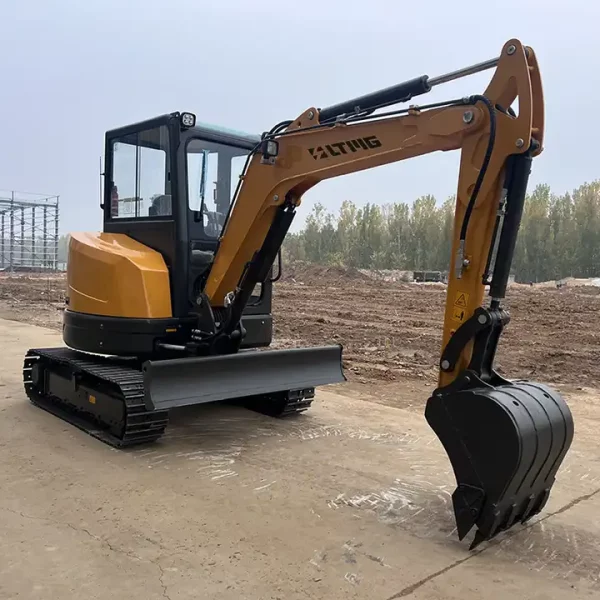

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

3.5ton Mini Excavator, Digger, LTE19-35R

R345,000.00

With superior build quality and durable components, the LTE19-35R guarantees long-term reliability and performance in diverse working conditions. Whether it’s digging trenches, landscaping, or site preparation, this mini excavator is a dependable ally for professionals seeking efficiency and precision in their operation

SKU: RNB5Q8X Categories: Construction Equipment, Excavators

Additional information

Model	LTE19-35R
Condition	New
Applicable Industries	Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining
Hydraulic Cylinder Brand	WEICHAI
Hydraulic Pump Brand	WEICHAI
Hydraulic Valve Brand	WEICHAI
Warranty of core components	2 Years
Core Components	Engine, Gear, Motor, Gearbox, Hydraulic Pump, Hydraulic Cylinder, Hydraulic Valve.
Moving Type	Crawler Excavator
After Sale Support Provided	Yes
After-sales Service Provided	Online support/ on site support / parts replacement
Machine Weight	3810 kg
Engine Brand	Kubota D1703 18.5KW/2200rpm
Max. Turque	97.4N.m/1500RPM
Type	In-line, water cooled, Mechanical pump, normally aspirated
Displacement	1.647L
No. of cylinder	4
Main Performance	—-
Swing Speed	r/min 0-11
Traveling Speed(high/low)	km/H 4.4/2.4km/h
Grade ability	° 58%
Max. Bucket Digging Force	kN 30.4
Arm Digging Force	kN 18.2
Ground Pressure	Kpa 32
Hydraulic system pressure	Mpa 22.5
Boom Length	Mm 2535
Arm Length	Mm 1400
Fuel Tank capacity	L 42
Hydraulic Tank capacity	L 48.5
Engine oil capacity	L 7
Carrier roller(each side)	1
Supporting roller(each side)	4
Overall Dimensions	—-
Overall Length	mm 4915
Overall Width	mm 1720
Overall Height	mm 2525
Mini Ground clearance	mm 295
Track width	mm 300
Axle base(Track length on ground)	mm 1670
Length of track	mm 2154
Track Gauge	Mm 1420
Swing radius at tail	Mm 860
Swing radius at front	Mm 2538
Height of blade	Mm 350
Operation parameters	—-
Bucket Capacity	m3 0.12
Max. Digging Radius	mm 5480
Max. Digging Depth	mm 3208
Max. Digging Height	mm 4800
Max. Dumping Height	mm 3406
Max. vertical digging depth	mm 3208
Warranty	2 Years
