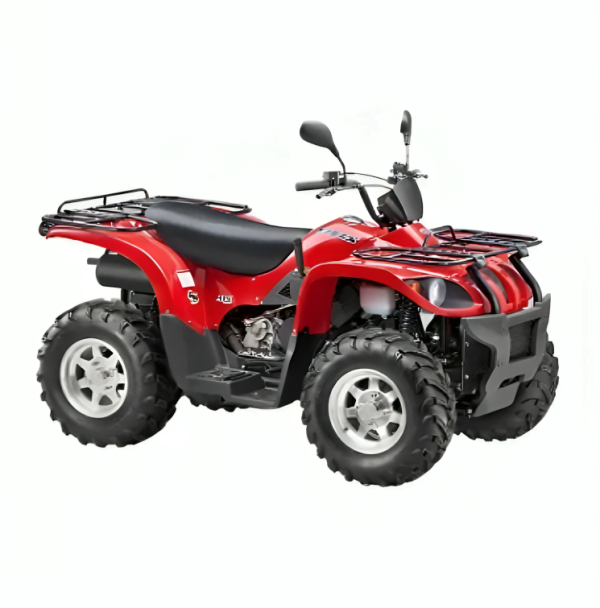

Name: 32HP 500cc High-Performance Automatic 4x4 ATV.
SKU: 14D5NJ
Availability: InStock

R96,900.00

SKU: 14D5NJ Category: Quad Bikes

Additional information

Condition	New
Model	Jaglin-500
Engine Type	500cc water cooled, 4 stroke, single cylinder, 4 valve
Max Power	24kW (32.2hp)/6300rpm
Max Torque	40Nm/4800rpm
Compression Ratio	10.2:1
Carburetion	CVK KE1 H1N 75NA, Single Chamber
Ignition	CDI
Starting System	Electric and Pull Start
Fuel Tank Capacity	12.6L
Max Speed	76km/h
Transmission	Belt CVT Full Auto with H, L, N, R Manual gear shifting
Brakes	4 Wheel Disk Brakes
Drive Train	2WD/4WD adjustable by push button, rear wheels always lock, no differential, shaft drive
Suspension/front	Independent double wishbone
Suspension/rear	Independent double wishbone
Brake/front	Dual hydraulic disc, twin pistons
Brake/rear	Hydraulic disc, self-adjust packing system, shaft mounted
Tires/front	AT25 x 8-12
Tires/rear	AT25 x 10-12
Dimensions	L x W x H: 2,050 x 1,150 x 1,450mm
Wheelbase	1,280mm
Turning radius	3,600mm
Ground clearance	230mm
Core Components	Motor, Gearbox, Brakes System, Battery, Handlebars, Electric starter, ( (Suspension units – if not modified by buyer)
Warranty of core components	1 Year
After-sales Service Provided	Online support/ on site support / parts replacement
Showroom Location	Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, China, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
Delivery	Free
