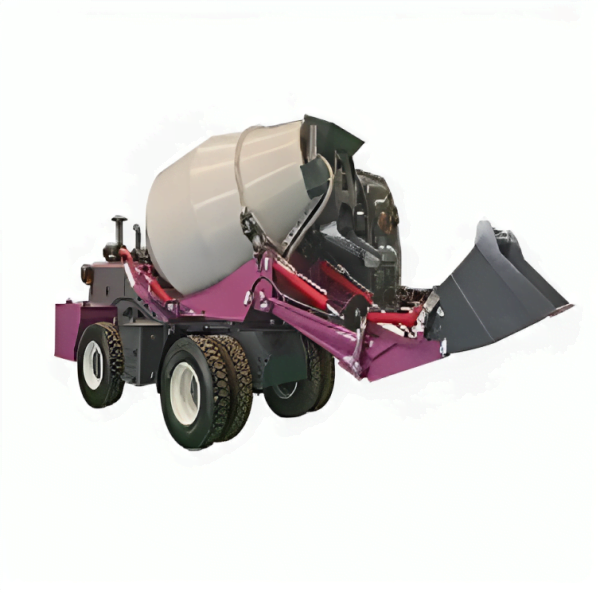

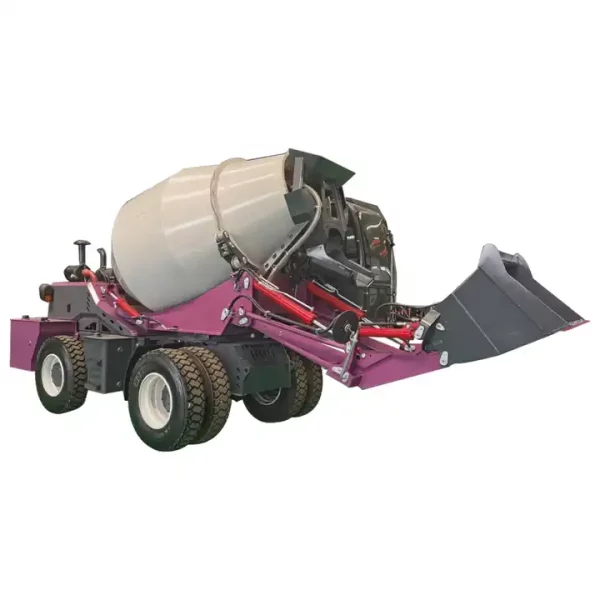

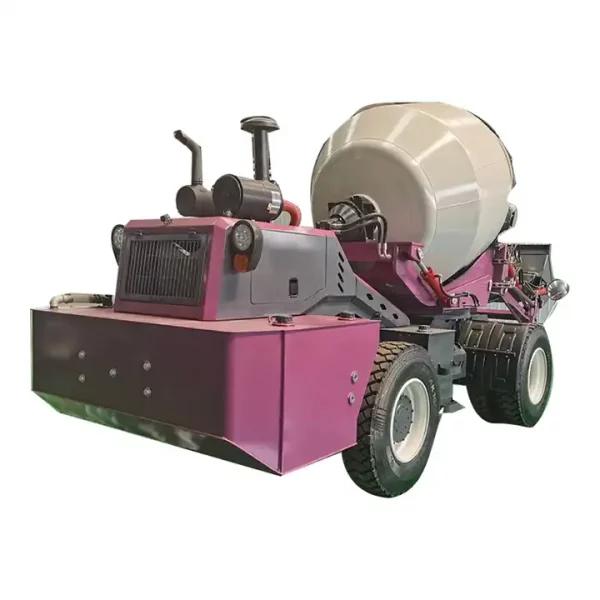

Name: 3500L Concrete Mixer Truck Machine with Self Loading System
SKU: RN667UK
Availability: InStock

Sale!

Original price was: R385,000.00.Current price is: R285,000.00.

SKU: RN667UK Categories: Cement Mixer, Construction Equipment

Additional information

Applicable Industries	Construction works
Condition	New
Warranty of core components	2 Years
Core Components	PLC, Engine, Gearbox, Motor
Weight	8000 kg
Warranty	3 Years
Engine power(KW)	KW 85
Drum Capacity(m³)	m³ 6
Valid output(m³)	m³ 3.5
Overall dimension LengthWidthHeight(mm)	mm 615027003350
Axle base	mm 2450
Front wheel base	mm 1680
Rear wheel base	mm 1680
Dumping height	mm 1400
Minimum ground clearance(mm)	mm 290
Total weight(KGS)	KGS 8000
Fuel consumption (Theoretical)L/H	L/H 8.0-10.0
Maximum drive speed	KM/H 25
Tank rotation speed	Turn/minute 18
Tank rotation angle	° 270
Drive Bridge	big hub reductor
Gear box	280
Tire Dimensions (Front)	12R22.5(Double Tire) or 16/70-20(Single Tire)
Tire Dimensions (Rear)	12R22.5or16/70-20
Braking distance	mm 1000
Engine oil capacity	L 13
Hydraulic oil capacity	L 120
Hydraulic oil type	L No. 46 efficient wearable
Fuel tank	L 120
Water tank	L 750
Small pump displacement	L/MINUTE 150
Big pump displacement	L/MINUTE 150
Radius of turning circle	6
Bucket capacity	m³ 0.6
Transmission oil type/capacity	L No. 8 transmission oil/50
Axle gear oil type/capacity	L No. 18 double curve bight/3.5
Hub reduction gear oil type/capacity	No. 18 double curve bight/1.8
Double tire pressure	Bar 10
Single tire pressure	Bar 6
Tank pressure	Bar 4.0-8.0
