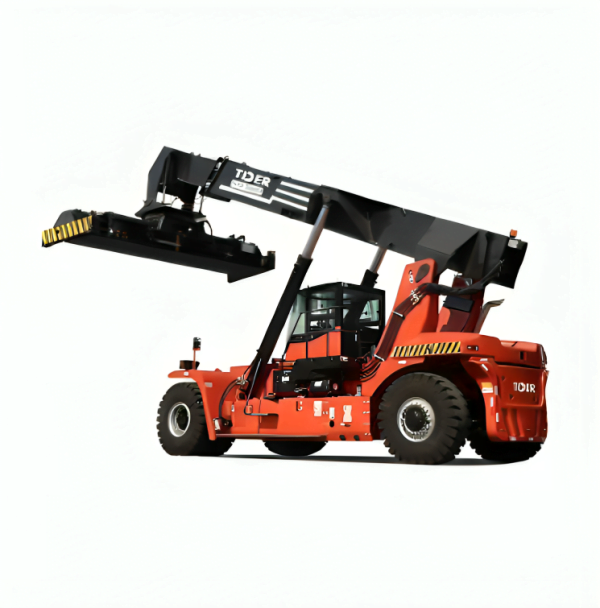

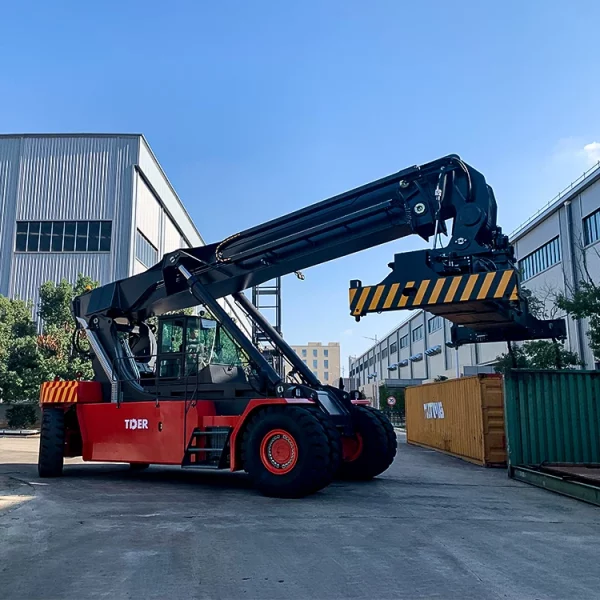

45 ton Container Reach Stacker ( Boom lift angle, raised/lowered a/b( / °) 61/ 0 )

45 ton Container Reach Stacker ( Boom lift angle, raised/lowered a/b( / °) 61/ 0 )
45 ton Container Reach Stacker ( Boom lift angle, raised/lowered a/b( / °) 61/ 0 )
45 ton Container Reach Stacker ( Boom lift angle, raised/lowered a/b( / °) 61/ 0 )
45 ton Container Reach Stacker ( Boom lift angle, raised/lowered a/b( / °) 61/ 0 )

R3,286,900.00

Upgrade your equipment with our top-of-the-line 45-ton Container Reach Stacker featuring a superior boom lift angle of 61/0 degrees. Boost your productivity and efficiency with this powerhouse machinery.

Additional information

Condition

New
Model

TDER BTF78-D31
Applicable Industries

Shipping Container Storage, Manufacturing Plant, Transportation, Food & Beverage Factory, Farms, Retail, Construction work, Other
Power unit: battery, diesel, LP gas, mains power

Diesel
Operation: manual, pedestrian, stand-on, seated, order picker

Rider seated
Load capacity(L1, L2, L3)

Q (kg)
45000
Load centre, First row(L1)

c (mm)
1800
Load centre, Second row(L2

c (mm)
3860
Load centre, Third row(L3)

c (mm)
6400
Axle centre to spreader center(L1-1/2 high)

x (mm)
2800 / 2600
Wheelbase

y (mm)
6400
Dimensions

……………………………
Boom lift angle, raised/lowered

a/b( / °)
61/ 0
Height boom lowered

h1 (mm)
4945
Lift height(L1, L2, L3)

h3 (mm)
15900 / 14100 /11350
Height, boom extended

h4 (mm)
19000
Height of cabin

h6 (mm)
3900
Height, operators seat

h7 (mm)
2840
Towing coupling height

h10 (mm)
600
Twistlock height lowered

h13 (mm)
1495
Overall length with spreader

l1 (mm)
11618
Overall length

l2 (mm)
8410
Overall width

b1/b2 (mm)
4180 / 3400
Width of soreader 20'/40’

b3 (mm)
6050 /12150
Ground clearance minimum

m1 (mm)
345
Ground clearance, centre of wheelbase

m2 (mm)
300
Stacking aisle 20' container

Ast (mm)
10225
Stacking aisle 40' container

Ast (mm)
13050
Turning radius

Wa (mm)
8605
Minimum pivoting point distance

b13 (mm)
3400
Wheelspan, Front wheels

b10 (mm)
3030
Wheelspan, Rear wheels

b11 (mm)
2786
Weights

………………………….
Weight

kg
UnLaden
71400
Laden
116400
Load on drive axle

kg
UnLaden
36400
Laden
101900
Load on steering axle

kg
UnLaden
35000
Laden
14500
Travelling speed km/h

UnLaden
25
Laden
21
Climbing ability

%
UnLaden
30
Laden
28.8
Tractive force

kN
UnLaden
325
Laden
——
Lifting speed

m/s
UnLaden
0.39
Laden
0.28
Lowering speed

m/s
UnLaden
0.39
Laden
0.39
Cabin

…………………………….
Movable closed cabin

.
Equiped with Air-conditioner, cooling/heating function

.
Noise level at driver's ear dBA

.
Engine

…………………..
Brand brand

Yuncai
Type

QSM 11
Cylinder number/ Displacement

6 / 10820 cm3
Rated power @ rated speed

250Kw @ 2100 rpm
Maximum torque

1674NM @ 1500 rpm
Rated current of alternator

150 A
Battery

24 V (2 x 12 /150)
Core Components

Engine, Chassis, Gearbox, Steering System, Lift Cylinder, Hydraulic Pump
Warranty of Core Components

2 Years
After-sales service provided

Online support/ on site support / parts replacement
Showroom Location

Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
Delivery

Free
