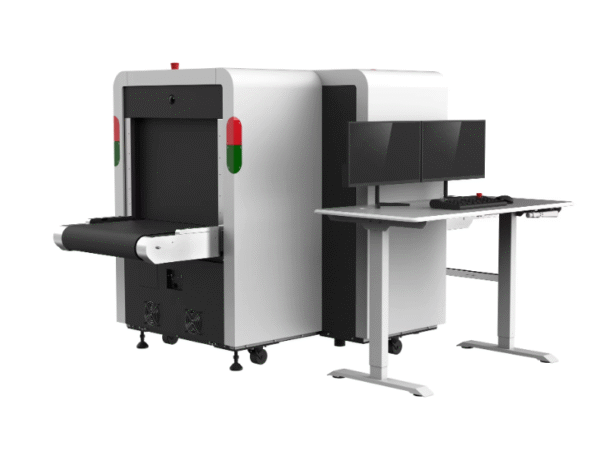

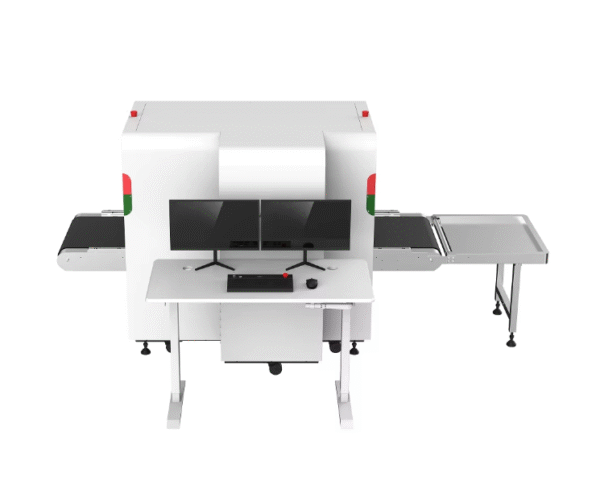

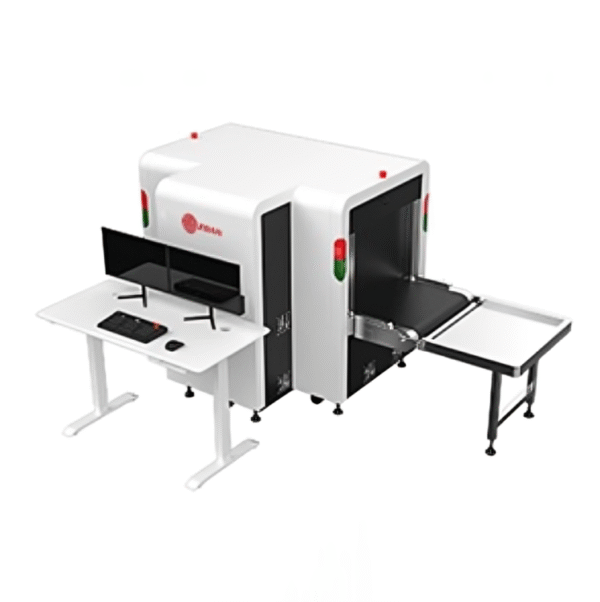

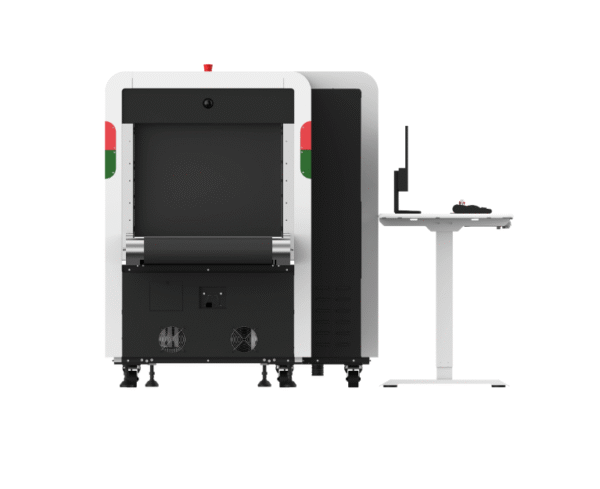

AI Intelligent Dual View CA91277E X-ray Luggage Scanner

AI Intelligent Dual View CA91277E X-ray Luggage Scanner
AI Intelligent Dual View CA91277E X-ray Luggage Scanner
AI Intelligent Dual View CA91277E X-ray Luggage Scanner
AI Intelligent Dual View CA91277E X-ray Luggage Scanner

R160,000.00

AI Intelligent Dual View CA91277E X-ray Luggage Scanner
High-performance dual-view X-ray scanner with advanced AI threat detection. Features simultaneous vertical and horizontal imaging for complete object analysis. Integrated artificial intelligence enables real-time identification of weapons, explosives, and prohibited items. Delivers high-resolution imaging, material classification (organic/inorganic/mixed), and automatic alerts. Includes a fast conveyor system, ergonomic touchscreen controls, and durable design for continuous operation. Suitable for airports, border control, transit stations, and critical infrastructure. Tunnel size and specs customizable. Power: AC 220V±10%, 50Hz. Operating Temp: 0–45°C. Efficient, intelligent, and security-grade.

Additional information

Condition

New
Applicable Industries

Airport, Courthouse, Shop, Nightclub, Beverage Store, Warehouse, Factory. Office, Storage House, Farm, Other
CPU

Intel dual-core processor
RAM

16 GB
Operating System

Embedded Linux OS
User Interface

Local GUI (full functions); Web interface
Tunnel size

650 mm × 500 mm
X-ray Tube Anode Voltage

140 kV
X-ray Tube Cooling

Sealed oil bath with forced air
Wire Resolution

38 AWG (0.1 mm)
Penetration(steel)

Typical: 36 mm ; standard: 34 mm
Leakage Dose-rate

≤ 0.9 μSv/h (μGy/h)
Noise Level

≤ 65 dB
Conveyor Speed

0.2 m/s
Conveyor Hight

approx. 665 mm
Maximum Belt Load

200 kg (440.92 lb)
Current Leakage

≤ 0.25 mA
Film Safety

ISO 1600 (33 DIN)
Power Supply

AC 220 V–240 V, 50/60 Hz; AC 100 V–130 V, 50/60 Hz

(optional)
Typical Power Consumption

500 W
Maximum Power Consumption

1 kW
Intelligent Temperature Control

Detects the temperature of the mainboard and HDD, and automatically adjusts the fan speed to ensure stable and quiet operation.
Operating Temperature

0 °C to +45 °C (32 °F to +113 °F)
Operating Humidity

0%–95% (RH), non-condensing
Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity

0%–95% (RH), non-condensing
Dimensions

2053.9 mm × 915.6 mm × 1434.7 mm
(80.86" × 36.05" × 56.48")
Package Size

2445 mm × 1148 mm × 1667 mm
(96.26" × 45.20" × 65.63")
Net Weight

480 kg
Gross Weight

580 kg
Installation Mode

Floor installation
Control Console Size

1200 mm × 750 mm × 600 mm (47.2" × 29.5" × 23.6")
Control Console Package Size & Weight

1276 mm × 376 mm × 200 mm (50.24" × 14.80" × 7.87"),
38.5 kg
Warranty

5 Years
Showroom Location

Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
After-sales service provided

Online support/ on site support / parts replacement
Delivery

Free ( T&Cs Apply )
