R122,500.00

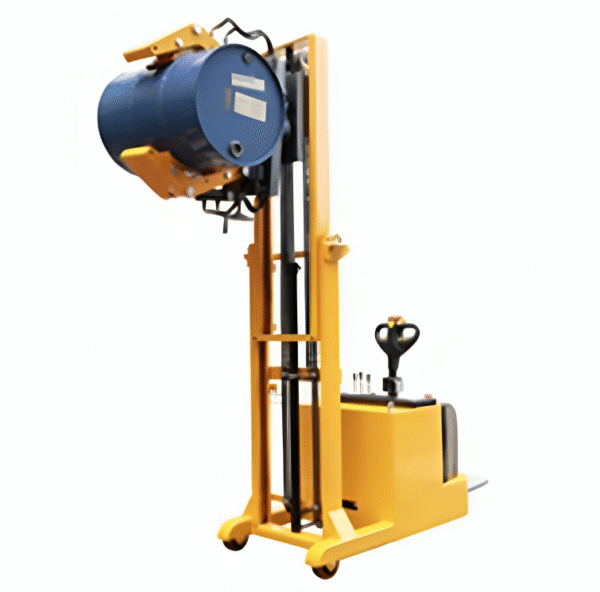

Move, lift, and rotate heavy drums with precision using this electric drum handling solution. Perfect for 55-gallon drums, it features a high-capacity lift system, secure hydraulic clamp, and smooth 360° rotation. Ideal for industrial applications including chemicals, food, oils, and manufacturing.

SKU: NRJPB6RT-1-1-1-1 Categories: Drum Handler, Drum Lifter, Electric Drum Handler, Electric Drum Lifter Tags: Drum Handler, Drum Lifter, Electric Drum Handler, Electric Drum Lifter

Additional information

Condition	New
Applicable Industry	Chemical manufacturing Food and beverage processing Pharmaceutical production Paint and coatings industry Oil and gas Waste management Logistics and warehousing Agriculture and fertilizers Mining and minerals Water treatment plants
Model	DT-A4511R
Equipment Type	Electric Hydraulic Drum Stacker with Rotating Clamp
Power Source	Electric Drive
Rated Load Capacity	1000 kg (Standard)
Applicable Drum Diameter	Ø 570–620 mm
Applicable Drum Height	880–960 mm
Drum Types Supported	Steel, Plastic, Fibre, Closed-head or Open-top
Drum Orientation	Vertical (lift, clamp, and rotate in vertical axis)
POWER SYSTEM	______________________________________________________________________________________________________
Battery Type	Maintenance-Free Lead-Acid / Optional Lithium-ion
Battery Voltage / Capacity	24V / 100Ah LiFePO₄
Charging Input	AC 220V / 50–60Hz
Charging Time	2–4 Hours
Operation Time (Full Charge)	6–8 Hours Continuous Use
HYDRAULIC SYSTEM	_______________________________________________________________________________________________________________
Hydraulic Pump	DC Power Unit, Integrated Tank, Relief Valve System
Rated Pressure	16 MPa
Hydraulic Oil Type	ISO VG 32 / 46 Anti-Wear Hydraulic Oil
Cylinder Type	Industrial-Grade Chrome-Plated Telescopic Cylinder
Seal Brand	Hallite / NOK Imported Seals
Lift Method	Single-stage Hydraulic Cylinder
Rotation System	Hydraulic Gear Motor with Rotary Actuator
Rotation Capability	360° Continuous (Clockwise & Counter-clockwise)
CLAMPING SYSTEM	________________________________________________________________________________________________________
Clamp Type	Electro-Hydraulic Actuated Parallel Clamp
Clamp Jaw Material	Reinforced Steel with Polyurethane Lining
Clamp Force Range	600–1000 N (Adjustable via Valve)
Clamp Width Adjustment	Manual or Auto, 570–620 mm Range
Drum Grip Protection	Non-Marking Polyurethane Grippers
DRIVE & CHASSIS	________________________________________________________________________________________________________
Drive Motor	0.75 – 1.2 kW DC Motor with Differential Gearbox
Drive Control	Curtis/ZAPI Electronic Speed Controller
Travel Speed (Loaded/Unloaded)	4.0 / 5.0 km/h
Climbing Gradient	6% Loaded / 10% Unloaded
Turning Radius	≤ 1600 mm
Brake System	Electromagnetic Parking Brake (Auto-Hold)
Steer Wheel	Ø 250 mm Polyurethane, Enclosed Bearing
Load Wheel	Ø 180 mm Tandem PU Rollers
Ground Clearance	70 mm
DIMENSIONS	____________________________________________________________________________________________________________
Overall Length (with Clamp)	1650 mm
Overall Width	950 mm
Overall Height (Forks Lowered)	2000 mm
Fork Length	1000 mm
Lift Height Options (Max Fork)	1600 mm / 2000 mm / 2500 mm / 3000 mm
Platform Height	100 mm
SAFETY FEATURES	__________________________________________________________________________________________________________
Emergency Stop Button	Large Red Palm-Type Emergency Stop Switch
Reverse Current Cut-off	Built-in Reverse Protection
Load Backrest Guard	Steel Guard Plate with Lateral Reinforcement
Speed Limiting System	Proportional Speed Control Based on Load
Audible Alarm	Buzzer for Reverse / Overload / Battery Low
Battery Indicator	Digital Multi-Level LED Display
Thermal Protection	Overcurrent / Overheat Cut-off in Motor & Controller
Anti-Rollback Device	Prevents Backward Movement on Slopes
Core components	Drive motor Hydraulic pump Battery Electronic controller (e.g. Curtis controller) Hydraulic cylinder Clamp mechanism Rotation gear motor Charger Control handle Brake system
Warranty on core components	2 years
Showroom Location	Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
After-sales service provided	Online support/ on site support / parts replacement
Delivery	Free ( T&Cs Apply )
