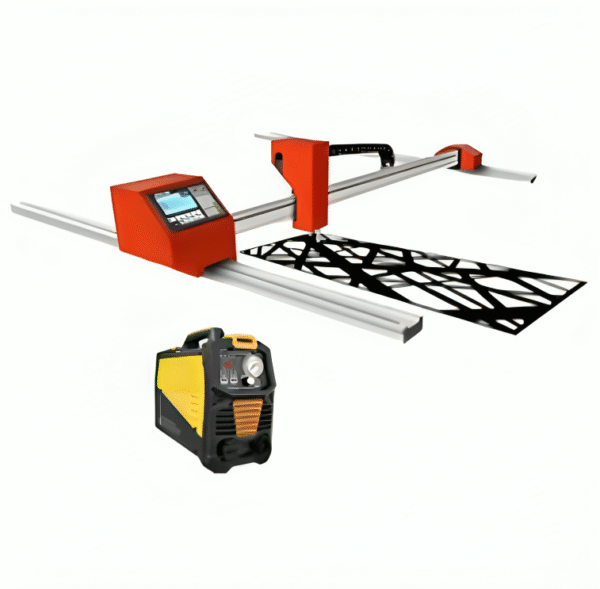

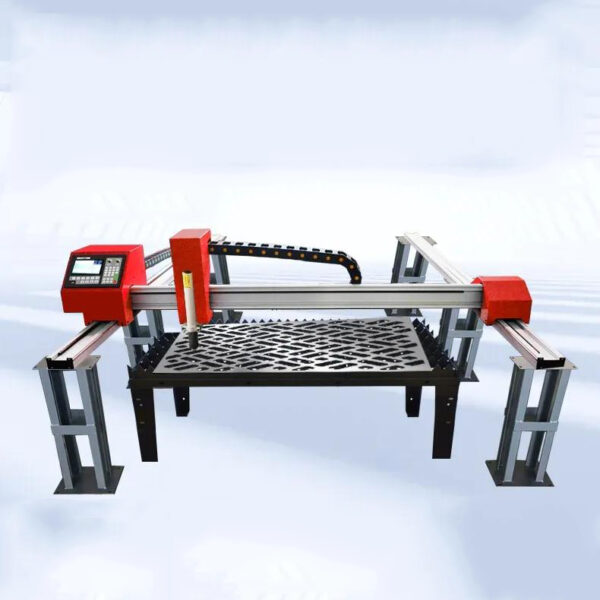

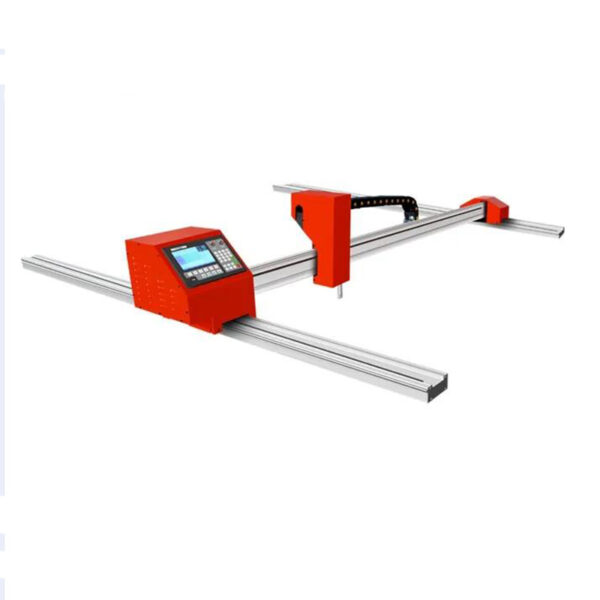

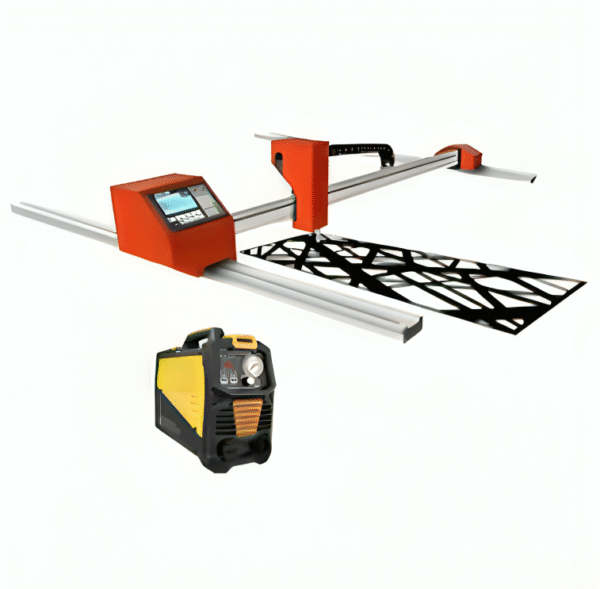

CNC Plasma Cutting Machine for Precision Decorative Metalwork

CNC Plasma Cutting Machine for Precision Decorative Metalwork
CNC Plasma Cutting Machine for Precision Decorative Metalwork
CNC Plasma Cutting Machine for Precision Decorative Metalwork
CNC Plasma Cutting Machine for Precision Decorative Metalwork

R28,900.00

Enhance your metalworking capabilities with our Gantry CNC Plasma Cutting Machine, designed for precision decorative cutting of doors, grilles, gates, screens, and architectural panels. Built on a durable gantry structure, this high-performance machine is perfect for both industrial and artistic applications.

⚙️ Key Features:

  • Wide-format gantry design for large metal sheets and high production volume

  • Reads standard G-code files for seamless integration with most design/CAD software

  • Compatible with all arc voltage plasma power sources (including Hypertherm, Huayuan)

  • Ideal for cutting intricate patterns on steel, aluminum, brass, and more

  • Supports FastCAM/StarCAM software for easy design conversion

  • Perfect for decorative doors, metal grilles, fences, panels, gates, and custom fabrication

 Whether you’re in architectural metalwork, furniture design, or custom fabrication, this CNC plasma cutter delivers clean, repeatable, and artistic cuts every time.

SKU: NRD416N3-1 Category: Tag:

Additional information

Condition

New
Applicable Industry

Metal Fabrication
Construction
Automotive
Shipbuilding
HVAC Manufacturing
Agricultural Equipment
Machinery Repair
Steel Structure Manufacturing
Custom Metal Art
Industrial Equipment Production
Model

TP-A310
Mechanical & Build Specifications

___________________________________________________________________________________________
Structure Type

Heavy-Duty Gantry Frame with Dual-Side Drive
Material Type

Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Brass, Copper
Axis Configuration

Dual Drive on Y-axis; Single X and Z-axis
Transmission System

High-Precision Rack & Pinion with Linear Guide Rails (Hiwin/Taiwan)
Guide Rails Type

Linear Square Guides with Dust Covers
Beam Structure

Welded Steel Gantry Beam, Stress-Relieved and Machined
Bed Frame

Industrial Steel Weldment with Leveling Pads
Cutting Bed Size

1500×3000 mm / 1600×3000 mm / 2000×3000 mm / 2000×6000 mm / Custom sizes
Gantry Clearance

150 mm (can be customized
Z-Axis Stroke

150 mm (with motorized torch lift
Machine Dimensions

Approx. 3.7 m × 2.25 m × 1.7 m
Electrical & Power System

_________________________________________________________________________________________
Input Voltage

220V or 380V ±10%, 50/60Hz (Single or Three-Phase)
Rated Power Consumption

10–50 kW (depends on plasma source)
Isolation Transformer

Optional (for voltage protection and noise suppression)
Power Distribution Panel

Integrated or Separate Cabinet (depending on model)
Plasma & Flame Cutting Capabilities

________________________________________________________________________________________
Cutting Modes

Plasma Cutting (Standard), Flame/Oxy-Fuel (Optional)
Plasma Power Source Compatibility

Huayuan, Hypertherm, LGK, Thermadyne, ESAB, etc.
Max Plasma Cutting Thickness

1–30 mm (with 100A–200A plasma source)
Max Flame Cutting Thickness

Up to 200 mm
Cutting Gases (Plasma)

Air, Oxygen (O₂), Nitrogen (N₂), Mixed Gases
Cutting Gases (Flame)

Oxygen with Propane or Acetylene
Torch Height Control

Automatic Arc Voltage Torch Height Controller (THC)
Flame Torch Features

Automatic Ignition, Pressure Regulator
Cooling Method

Air-Cooled (Water Cooling optional for heavy-duty plasma)
Motion & Control System

_________________________________________________________________________________________________________
Controller

Fangling F2100B (Options: F2300A, Starfire SF-2100S, SH-2012AH, Start Control)
Software Supported

FastCAM, StarCAM, AutoCAD DXF, Type3, ArtCAM, CorelDRAW
Communication Interface

USB / LAN / Offline U Disk
Drive System

Stepper Motor Drive (Upgrade: Panasonic/Yaskawa Servo)
Max Cutting Speed

0–8000 mm/min
Max Rapid Speed

12,000 mm/min
Positioning Accuracy

±0.2 mm/m
Repeatability Accuracy

±0.1 mm
Supported File Formats

G-code, DXF, PLT, TXT
Control Language

ISO Standard G-code
Interface Language

English, Chinese, Spanish, French, Portuguese, Russian
Environment & Compliance

___________________________________________________________________________________________________________
Operating Temperature

-10°C to +45°C
Operating Humidity

≤95% RH, Non-Condensing
Certifications

CE, ISO 9001 (UL/CSA available on request)
Noise Level

≤75 dB (depending on plasma source)
Safety Features

Emergency Stop, Arc Failure Alarm, Overheat Protection, Grounding System
Core components

CNC control system (including control screen)
Motors and drivers
Plasma power supply
Torch height controller (THC)
Guide rails and drive system
Electrical components
Torch assembly
Warranty on core components

2 years
Showroom Location

Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
After-sales service provided

Online support/ on site support / parts replacement
Delivery

Free ( T&Cs Apply )
