Curved Electric Stair Chair Lift for Disabled – Hydraulic Home Stair Climber with Emergency Lift & Auto Brake | 120kg Capacity
R60,000.00 R57,000.00

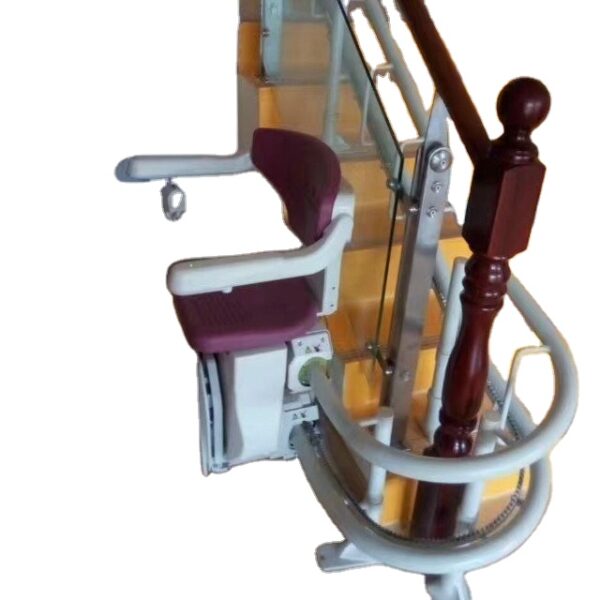

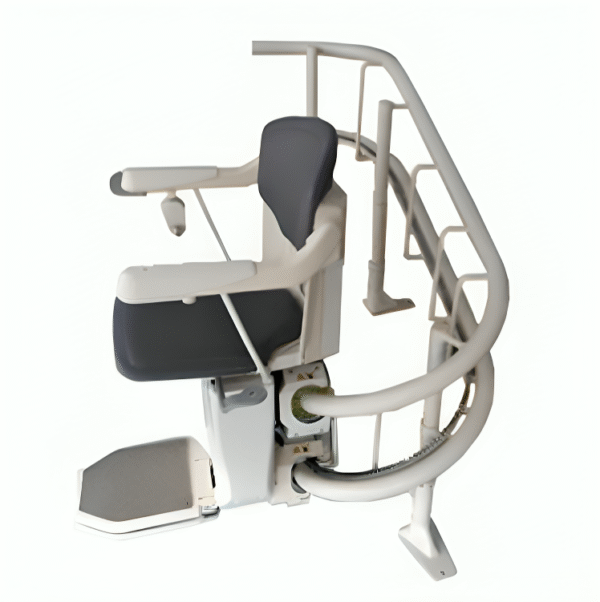

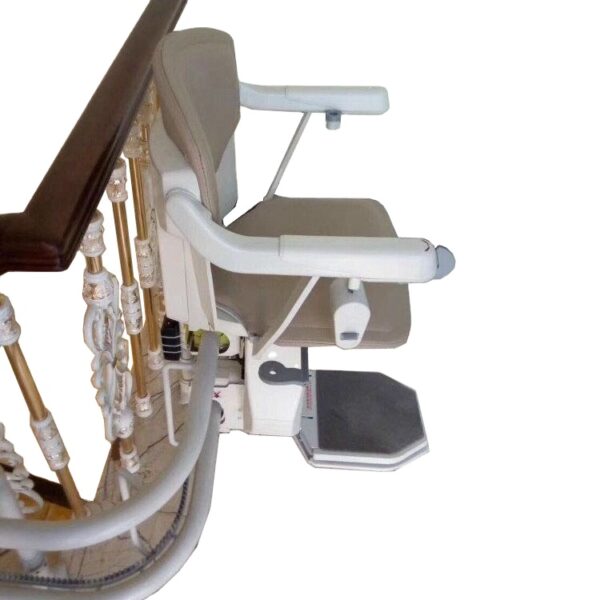

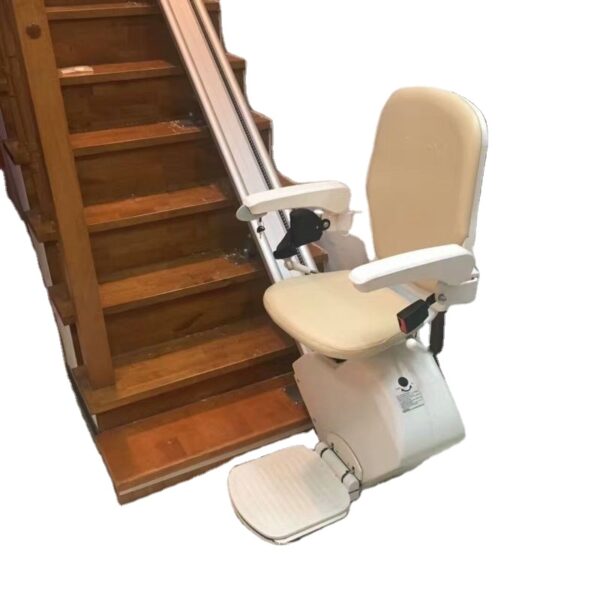

The Honty Curved Electric Stair Chair Lift is a reliable, compact, and user-friendly stair climbing solution designed for elderly or disabled individuals with mobility challenges. This modern home stair lift system ensures safe and smooth transportation along curved staircases, making it an ideal addition to private homes, nursing facilities, and care environments.
With an electric drive system and a side pedal brake, the chair lift provides controlled motion and emergency stopping features. Its hydraulic lift mechanism, fixed table platform, and compact dimensions make it easy to install in narrow staircases without the need for complex structural modifications.
Whether you’re looking for a dependable solution for home care or accessible infrastructure in public or private buildings, the Honty stair lift ensures comfort, convenience, and safety.
Additional information
Condition | New |
---|---|
Applications | Residential, Hospitals, Assisted Living Facilities |
Brand Name | Honty |
Material Composition | Main Frame: High-strength powder-coated steel for durability and structural stability Chair Seat & Backrest: PU leather or vinyl-covered foam for comfort, easy cleaning, and water resistance Armrests & Footrest: Aluminum alloy or reinforced ABS plastic for lightweight strength Lift Platform: Steel base with anti-slip surface coating Drive System: Steel and aluminum components with an electric motor and hydraulic piston Wheels (if mobile): Rubber-coated or polyurethane wheels for smooth, non-slip stair traction Brake System: Metal brake pads with mechanical pedal control |
Type | Curved Stair Lift / Articulated Electric Chair Lift |
Drive/Actuation | Electric Motor + Hydraulic System |
Lifting Mechanism | Mechanical Lift with Hydraulic Support |
Lift Platform Style | Fixed Table Platform |
Control System | Manual Hand Winch + Side Pedal Brake |
Rated Power | 0.75 kW |
Voltage | AC 220V / 50Hz (customizable) |
Power Source | Electric |
Operating Speed | Approx. 20 seconds per full lift cycle |
Minimum Lifting Height | 100 mm |
Maximum Lifting Height | Approx. 2000 mm (customizable) |
Table Size (L × W) | 675 mm × 600 mm |
Overall Dimensions | 2000 mm height × 600 mm width |
Weight Capacity | 120 kg |
Net Weight | 300 kg |
Seat Material | PU Leather / High-Density Foam |
Frame Material | Powder-Coated High-Strength Steel |
Armrest & Footrest Material | Aluminum Alloy / ABS Plastic |
Wheel Type (if applicable) | Non-slip Polyurethane (PU) Coated Wheels |
Brake Type | Mechanical Side Pedal |
Noise Level | ≤ 60 dB |
Safety Features | Emergency Stop, Seatbelt, Anti-slip Footrest, Manual Override |
Inclination Angle Range | 0–45° (Custom Track Design) |
Control System Specifications | ********************************************* |
Primary Control | Manual Hand Winch (user-operated crank or handle) |
Secondary Control | Foot-activated Side Pedal Brake for emergency stop |
Motor Activation | Electric switch/button-based start mechanism |
Emergency Control | Manual override system in case of power failure |
Safety Lock Function | Integrated lock to prevent unintended movement |
Speed Control | Fixed-speed motor with smooth start/stop |
User Interface | Simple control panel or wired handheld remote (optional, depending on model) |
Core components | Electric Motor |
Warranty on core components | 3 years |
Showroom Location | Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia |
After-sales service provided | Online support/ on site support / parts replacement |
Delivery & Installation | Free ( T&Cs Apply ) |
