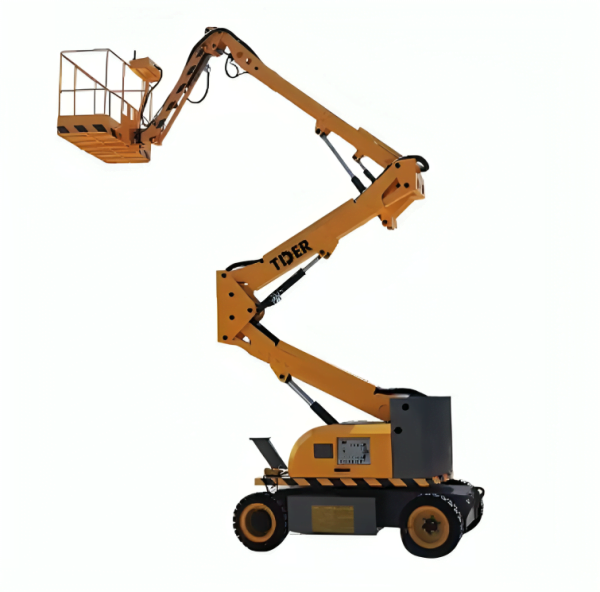

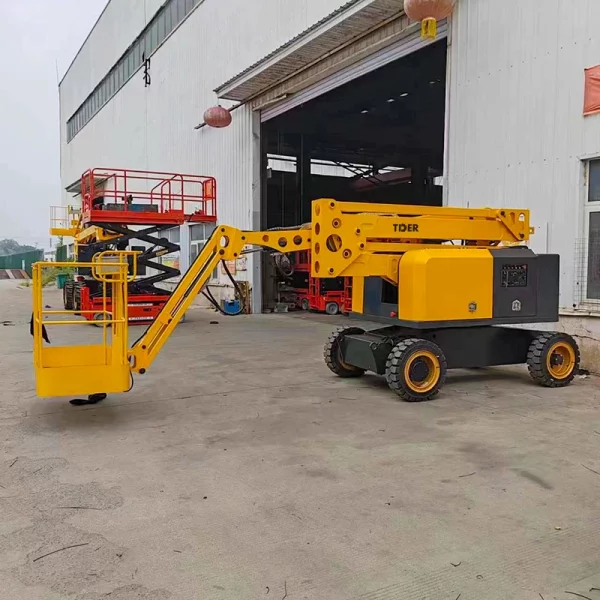

Name: Boom Lift, Diesel Engine Powered Hydraulic Boom Lift, Max Working Height 30m
SKU: RNN6ZK6
Availability: InStock

R458,000.00

Additional information

Condition	Model
Model	TDER ZTDQ12Z
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction work, Other
Measurements	……………………….
Working height maximum	m 30
Platform height maximum	m 28
Working radius maximum	m 22
(LxW) Platform dimensions	m 2.44×0.91
Length (stowed)	m 13.5
Width (stowed)	m 2.5
Height (stowed)	m 2.83
Wheelbase	m 3
Ground clearance (center)	m 0.43
Productivity	…………………………
Lift capacity (non-restricted )	kg 230
Lift ca pacity (restricted)	kg 480
Platform occupancy maximum	2
Platform rotation	±80°
Vertical jib rotation	140°
Turntable tailswing	m 1.4
Drive speed (stowed)	km/h 4.4
Drive speed (raised)	km/h 1.1
Gradeability	40%
Working slope maximum	3°/3°
Turning radius (inside)	m 3.59
Turning radius (outside)	m 5.59
Drive & steer mode	4x4x2
Tire type	385/65-22.5
Power	…………………………
Engine	CumminsQSF2.8T-C71
Rated power	35kw@2200rpm
Fuel tank capacity	L 151
Hydraulic oil tank capacity	L 150
Control voltage	12V DC
Weight	16500
Core components	Motor, Engine, Battery
Warranty of core components	1 Year
After-sales service provided	Online support/ on site support / parts replacement
Showroom Location	Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
Delivery	Free
