HomeRenco IndustrialDrum HandlerElectric Hydraulic Drum Stacker with 360° Rotating Clamp – Heavy-Duty Industrial Barrel Lifter

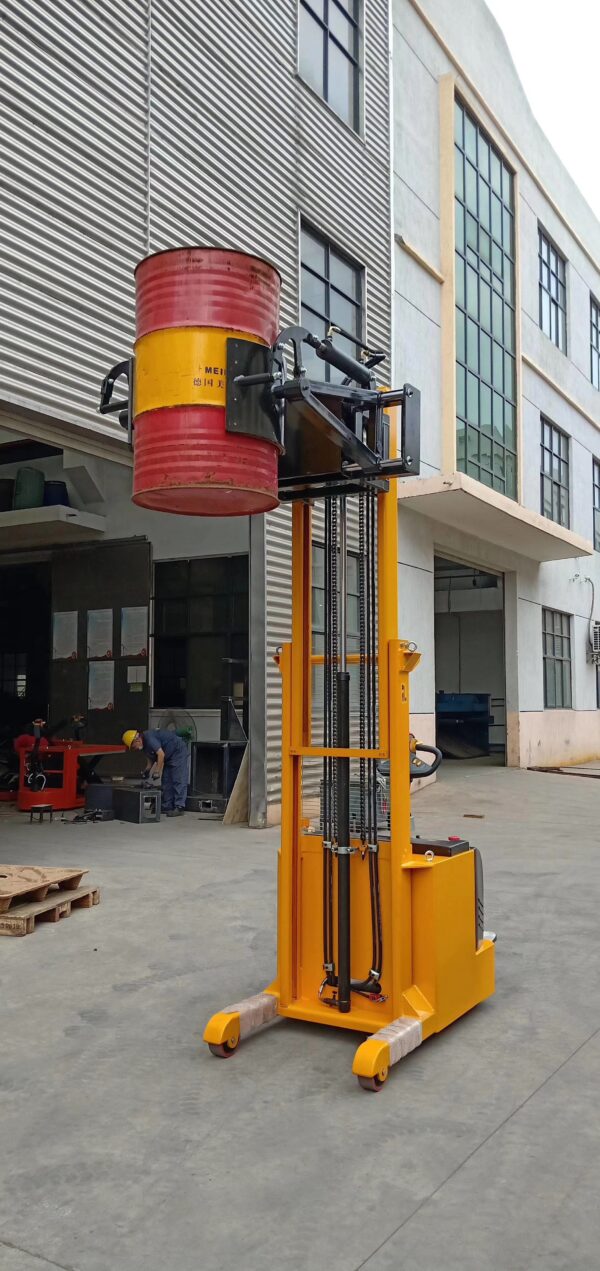

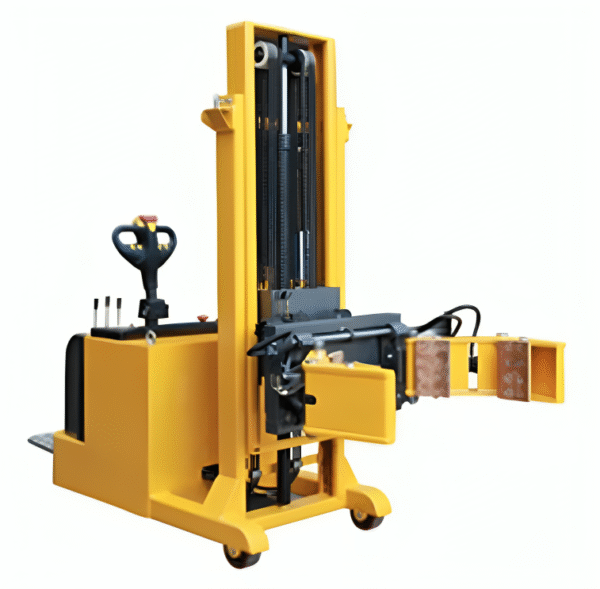

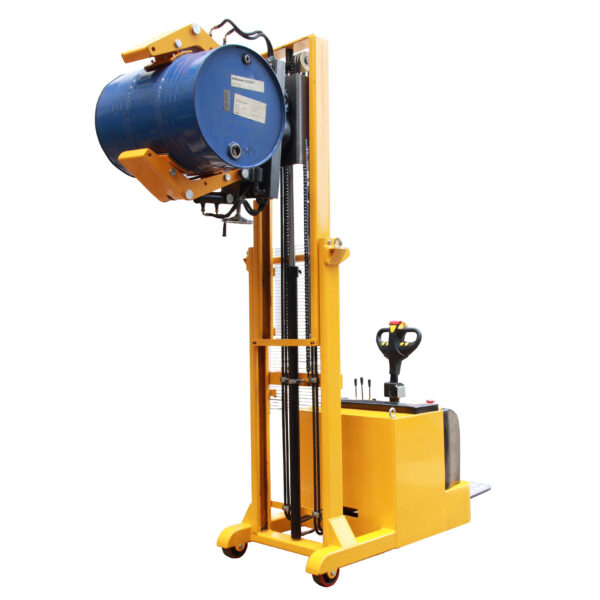

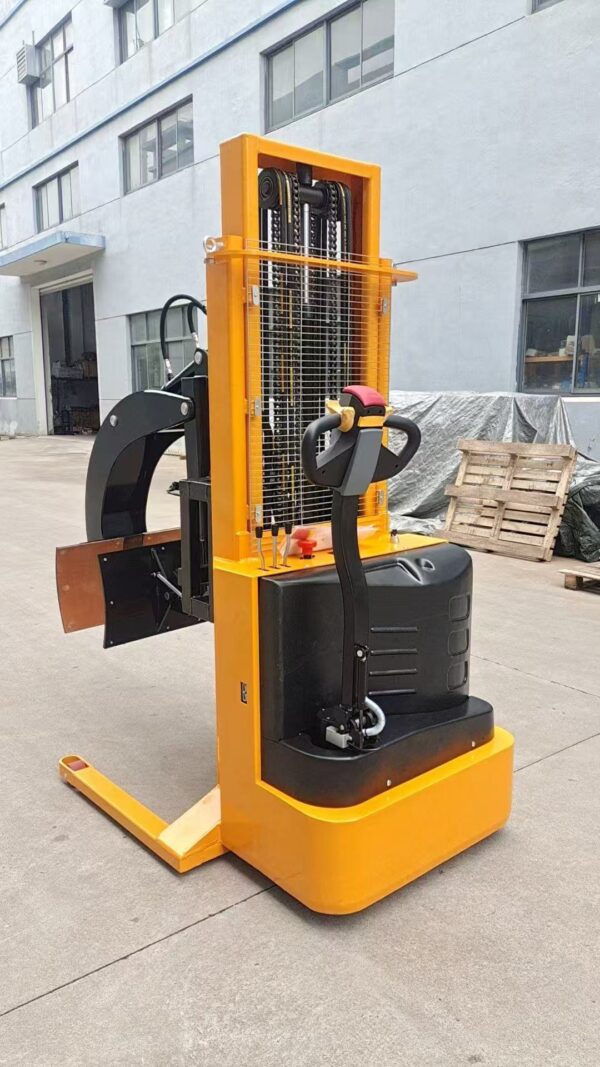

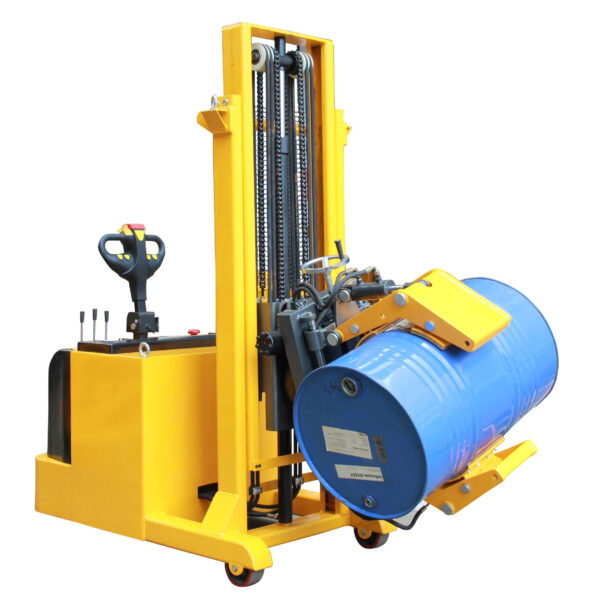

Electric Hydraulic Drum Stacker with 360° Rotating Clamp – Heavy-Duty Industrial Barrel Lifter

Electric Hydraulic Drum Stacker with 360° Rotating Clamp – Heavy-Duty Industrial Barrel Lifter
Electric Hydraulic Drum Stacker with 360° Rotating Clamp – Heavy-Duty Industrial Barrel Lifter
Electric Hydraulic Drum Stacker with 360° Rotating Clamp – Heavy-Duty Industrial Barrel Lifter
Electric Hydraulic Drum Stacker with 360° Rotating Clamp – Heavy-Duty Industrial Barrel Lifter
Electric Hydraulic Drum Stacker with 360° Rotating Clamp – Heavy-Duty Industrial Barrel Lifter

R122,500.00

The Electric Hydraulic Drum Stacker with 360° Rotating Clamp is a high-performance industrial solution designed for lifting, rotating, and transporting 55-gallon (200L) steel, plastic, or fiber drums with maximum safety and efficiency. Built for demanding warehouse and production environments, this drum lifter offers a robust lifting capacity of up to 1000 kg and smooth hydraulic 360° rotation, making it ideal for pouring, mixing, or repositioning barrels with precision.

Powered by a reliable electric drive system and equipped with durable polyurethane wheels, this drum stacker ensures quiet operation and excellent maneuverability in confined spaces. Its reinforced clamp system securely grips drums without damage, while the ergonomic control handle provides intuitive operation for any trained operator.

Perfect for use in chemical plants, food processing facilities, pharmaceutical production, oil handling, and other industrial applications requiring heavy-duty drum movement.

🔍 Key Features:

  • Lifts and rotates standard 200L drums (steel, plastic, or fiber)

  • 360° hydraulic rotation for safe and controlled drum handling

  • High-capacity lift: up to 1000 kg

  • Electric-powered lift and drive system for efficient operation

  • Polyurethane wheels for smooth, floor-safe movement

  • Compact design for use in tight warehouse spaces

  • Built-in safety controls and emergency stop function

Additional information

Condition

New
Applicable Industry

Chemical manufacturing
Food and beverage processing
Pharmaceutical production
Paint and coatings industry
Oil and gas
Waste management
Logistics and warehousing
Agriculture and fertilizers
Mining and minerals
Water treatment plants
Model

DT-A4511R
Equipment Type

Electric Hydraulic Drum Stacker with Rotating Clamp
Power Source

Electric Drive
Rated Load Capacity

1000 kg (Standard)
Applicable Drum Diameter

Ø 570–620 mm
Applicable Drum Height

880–960 mm
Drum Types Supported

Steel, Plastic, Fibre, Closed-head or Open-top
Drum Orientation

Vertical (lift, clamp, and rotate in vertical axis)
POWER SYSTEM

______________________________________________________________________________________________________
Battery Type

Maintenance-Free Lead-Acid / Optional Lithium-ion
Battery Voltage / Capacity

24V / 100Ah LiFePO₄
Charging Input

AC 220V / 50–60Hz
Charging Time

2–4 Hours
Operation Time (Full Charge)

6–8 Hours Continuous Use
HYDRAULIC SYSTEM

_______________________________________________________________________________________________________________
Hydraulic Pump

DC Power Unit, Integrated Tank, Relief Valve System
Rated Pressure

16 MPa
Hydraulic Oil Type

ISO VG 32 / 46 Anti-Wear Hydraulic Oil
Cylinder Type

Industrial-Grade Chrome-Plated Telescopic Cylinder
Seal Brand

Hallite / NOK Imported Seals
Lift Method

Single-stage Hydraulic Cylinder
Rotation System

Hydraulic Gear Motor with Rotary Actuator
Rotation Capability

360° Continuous (Clockwise & Counter-clockwise)
CLAMPING SYSTEM

________________________________________________________________________________________________________
Clamp Type

Electro-Hydraulic Actuated Parallel Clamp
Clamp Jaw Material

Reinforced Steel with Polyurethane Lining
Clamp Force Range

600–1000 N (Adjustable via Valve)
Clamp Width Adjustment

Manual or Auto, 570–620 mm Range
Drum Grip Protection

Non-Marking Polyurethane Grippers
DRIVE & CHASSIS

________________________________________________________________________________________________________
Drive Motor

0.75 – 1.2 kW DC Motor with Differential Gearbox
Drive Control

Curtis/ZAPI Electronic Speed Controller
Travel Speed (Loaded/Unloaded)

4.0 / 5.0 km/h
Climbing Gradient

6% Loaded / 10% Unloaded
Turning Radius

≤ 1600 mm
Brake System

Electromagnetic Parking Brake (Auto-Hold)
Steer Wheel

Ø 250 mm Polyurethane, Enclosed Bearing
Load Wheel

Ø 180 mm Tandem PU Rollers
Ground Clearance

70 mm
DIMENSIONS

____________________________________________________________________________________________________________
Overall Length (with Clamp)

1650 mm
Overall Width

950 mm
Overall Height (Forks Lowered)

2000 mm
Fork Length

1000 mm
Lift Height Options (Max Fork)

1600 mm / 2000 mm / 2500 mm / 3000 mm
Platform Height

100 mm
SAFETY FEATURES

__________________________________________________________________________________________________________
Emergency Stop Button

Large Red Palm-Type Emergency Stop Switch
Reverse Current Cut-off

Built-in Reverse Protection
Load Backrest Guard

Steel Guard Plate with Lateral Reinforcement
Speed Limiting System

Proportional Speed Control Based on Load
Audible Alarm

Buzzer for Reverse / Overload / Battery Low
Battery Indicator

Digital Multi-Level LED Display
Thermal Protection

Overcurrent / Overheat Cut-off in Motor & Controller
Anti-Rollback Device

Prevents Backward Movement on Slopes
Core components

Drive motor
Hydraulic pump
Battery
Electronic controller (e.g. Curtis controller)
Hydraulic cylinder
Clamp mechanism
Rotation gear motor
Charger
Control handle
Brake system
Warranty on core components

2 years
Showroom Location

Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
After-sales service provided

Online support/ on site support / parts replacement
Delivery

Free ( T&Cs Apply )
