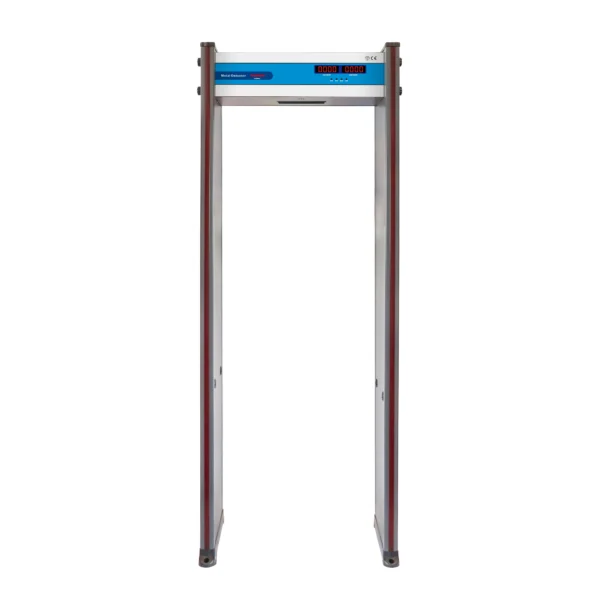

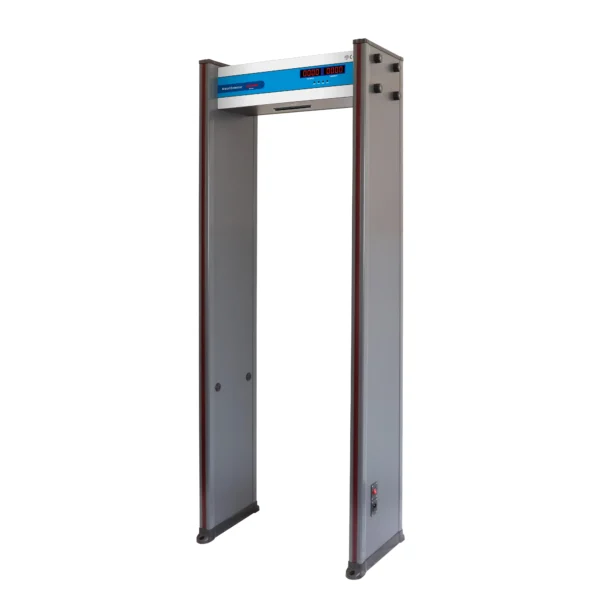

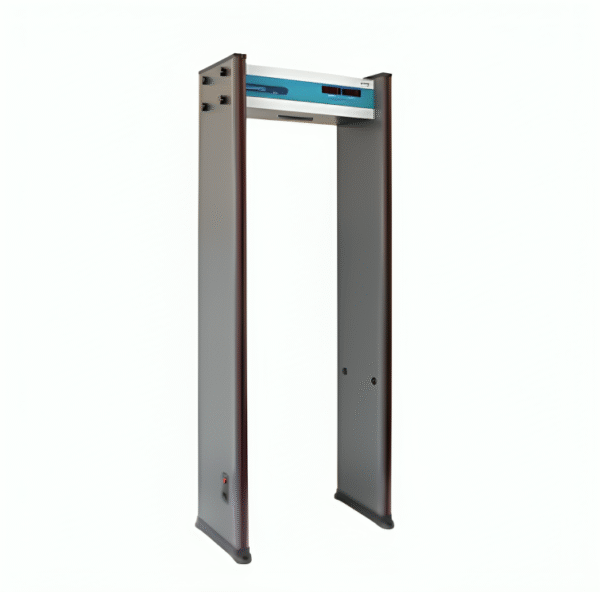

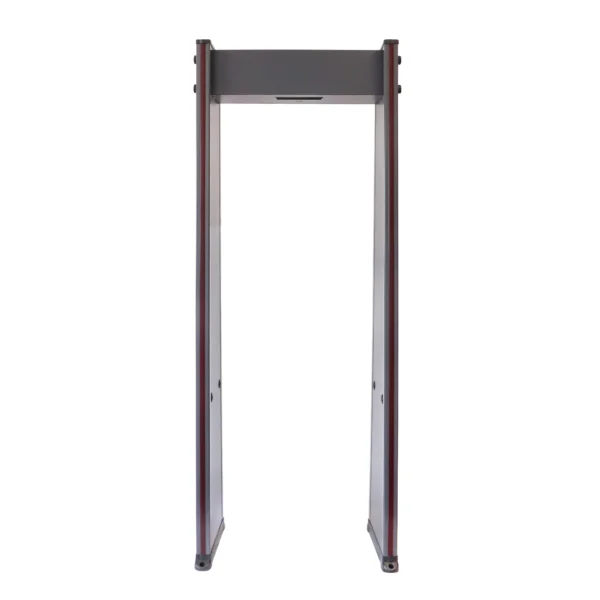

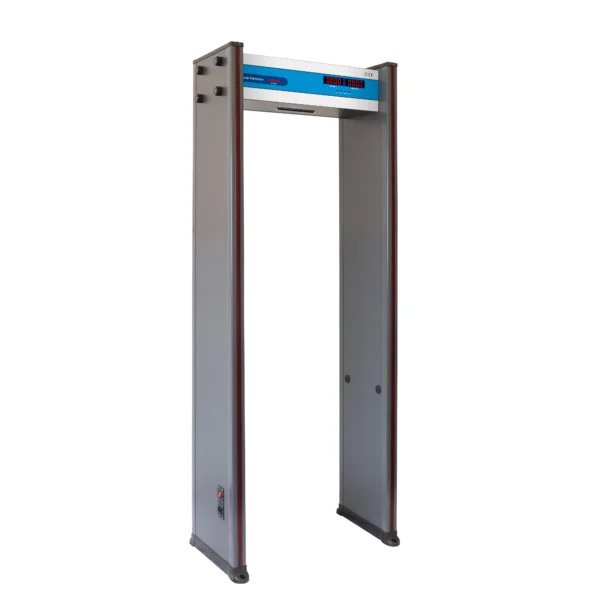

Full Body walk-through Weapon Detector

R27,500.00

Product Introduction

The MCD-200 Security Door is an economical and practical metal detection solution designed for general users. It features six overlapping detection zones and LED indicator columns on both sides, allowing accurate localization of metal objects.

Equipped with microprocessor-based digital control technology, the MCD-200 offers strong anti-interference capabilities and stable performance. Its detection sensitivity can be easily adjusted from 0 to 99, enabling users to eliminate interference from common items like belt buckles and zippers. The unit complies with international safety standards and is safe for pregnant women.

This security door is ideal for indoor use in locations such as factories, exhibition halls, lobbies, private clubs, gyms, and entertainment venues.


Function Introduction

  1. Six Overlapping Detection Zones: Based on the human body’s structure, the door features six overlapping mesh detection zones. It uses advanced digital pulse technology with interactive transmission and reception to precisely locate metal objects.

  2. Infrared Scanning: Infrared sensors on both sides of the door panel capture signals quickly, reducing detection errors caused by induction delays. The system also automatically counts the number of people passing through.

  3. Adjustable Sensitivity: Each of the six detection zones offers 100 sensitivity levels. Users can adjust sensitivity based on specific requirements—capable of detecting metal objects as small as a paper clip. False alarms from belt buckles, keys, jewelry, and coins can be excluded, while dangerous items like knives and guns are reliably detected.

  4. Anti-Electromagnetic Interference: The system features advanced magnetic compatibility technology and digital processing with 100-level DSP, ensuring strong resistance to electromagnetic interference.

  5. High-Brightness Display Panels: A digital display and alarm board show real-time information, including the number of people passing, number of alarms triggered, detection zone location, and alarm intensity.

  6. Interference-Free Operation: The operating signal frequency can be configured, allowing multiple units to be used simultaneously without interference. Continuous operation is fully supported.

  7. Password Protection: A password protection system ensures only authorized users can modify system parameters, enhancing security and ease of management.

  8. Modular Design: The modular structure integrates functional components into the door panels and main control box on both sides, making installation simple and convenient. Maintenance and troubleshooting are also easy.

Additional information

Condition

Airports & Transportation Hubs, Government Buildings & Border Control
Power Plants & Industrial Sites, High-Security Manufacturing (e.g., electronics, pharma)
Hospitals & Biosecurity Zones, Stadiums, Arenas & Event Venues, Pubs, Factory, Shopping Center

Brand

MDC

Detection area

District 6

Sensitivity

0-99 adjustable, can be set according to detection requirements

Alarm mode

Sound and column lights alarm at the same time, positioning metal position

Display method

8-digit digital display

Power supply

220V AC, 50/60Hz

Power consumption

35W

Working environment

-10°C~45°C

Tunnel size

200 (high) * 70 (wide) * 56 (deep) cm

Dimensions

222 (high) * 82 (wide) * 67 (deep) cm

Package dimensions

Door panel: 230*72*25cm (2 pcs/carton)

Weight

Net weight 60.5kg/set, gross weight 71kg/set

Technical standard

1.The company has passed ISO9001:2008 quality management system certification
2.Products passed the EU CE certification
3.Strictly implement the "GB15210-1994. General technical conditions for pass-through metal detectors" national standard
4.Basic safety: meet the requirements of GB4793
5.Personal safety: meet the NILECJ-0601 standard, and the radiation is implemented according to the EN50081-1 standard.

IP Grade

IP55

Warranty

2 Years

After-sales service provided

Online support/ on site support / parts replacement

Delivery

Free ( T&Cs Apply )
