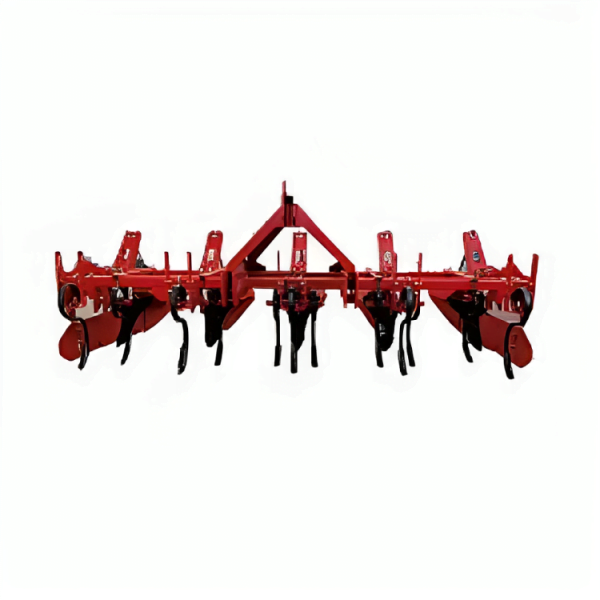

Mounted cultivator for operations continuous and inter-row tillage uniform the formation of convex ridges with finely ground
surface on light and medium soils, as well as looseninq the soil, hillinq and weedinq in order to create conditions for the
growth, care and harvesting of potatoes and carrots with using various loosening teeth, adjustable in height depending on the type
of soil

Row spacing not less than 75 cm

It is aggregated by tractors with a low load capacity, with a power of at least 70 hp

Cultivator dimensions: – length not less than 2380 mm; – width not less than 3270 mm

Weight not lessthan 950 kg

Number of rows at least 4 (four)

Hitch lower link hitch not lower than 2 (second) category

Double support frame.

Base frame fixed

Supplementation ofthe support frame with at least 2 (two) beams

Hilling bodies without shares, spring-loaded

Loose tooth (track ripper) with a size ofat least 150×10 mm

Loosening a hard crust of soil near the ridge and between combs additional loosening knives at least 2 (two) pieces.

Knives are fixed on brackets.

Ridge formers of individual rows with spring pendant

The ridge formers hang freely in a parallelogram behind the tool.

A transverse pipe connectingthe ridge formers to each other for stability, as well as for the operational conversion ofthe closed
version ofthe ridqe formers ofindividual rows to an open one.

harrow pressure moving along The top ofthe comb is regulated by holes.

The side shields prevent the loss ofearth from the side necessary for the ridge formation.

Guided knife element.

The required pressure on the soil is set through spring pressure.

Stainless steel molds

The inclination ofthe ridge-forming plate is set using a screw pair, which changesthe shape ofthe ridges

Inserts for accelerated processing of convex ridges
