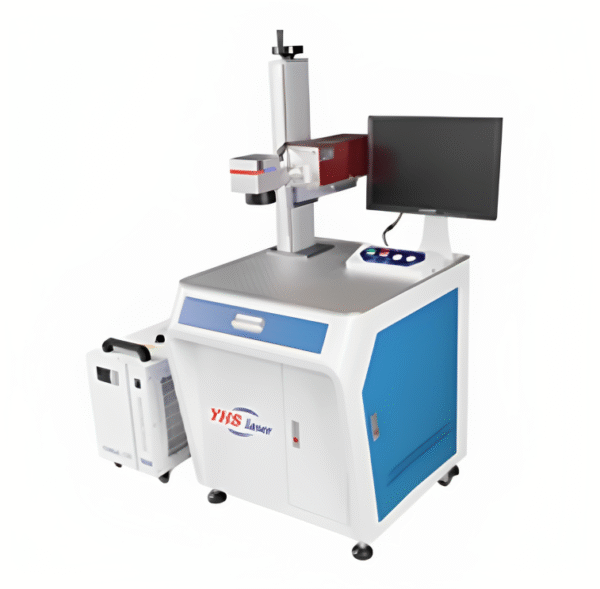

High-Precision Laser Engraving Machine for Glass, Wood & More

High-Precision Laser Engraving Machine for Glass, Wood & More
High-Precision Laser Engraving Machine for Glass, Wood & More
High-Precision Laser Engraving Machine for Glass, Wood & More
High-Precision Laser Engraving Machine for Glass, Wood & More
High-Precision Laser Engraving Machine for Glass, Wood & More
High-Precision Laser Engraving Machine for Glass, Wood & More

R42,000.00

Boost your productivity with our high-precision laser engraving machine, equipped with a smart visual control system for enhanced accuracy and ease of use. Designed for engraving on a variety of materials—including glass, wood, acrylic, leather, plastic, and metal-coated surfaces—this versatile machine is ideal for small businesses, workshops, and creative professionals. Whether you’re producing signage, personalized gifts, custom glassware, or branded merchandise, this efficient laser engraver delivers consistent, high-quality results.

SKU: NR11ZY7K-1 Category: Tag:

Additional information

Condition

New
Applicable Industry

Electronics
Medical Devices
Packaging
Automotive
Aerospace
Jewelry
Plastics
Consumer Goods
Semiconductor
Glass & Ceramics
Model

YSH05-410
Laser Type

Diode-Pumped Solid-State (DPSS) Ultraviolet Laser
Laser Brand

Huaray UV355 Series
Laser Wavelength

355 nm (UV)
Output Power

3W / 5W (optional 7W for industrial upgrades)
Beam Quality (M²)

< 1.2 (Gaussian beam, ideal for micro-marking and high-contrast engraving)
Beam Diameter at Output

~0.6–0.7 mm
Beam Divergence

< 1.8 mrad
Pulse Duration

15–20 ns
Peak Power Density

>100 kW/cm²
Pulse Energy

~100–150 µJ (varies by model)
Marking Performance

_______________________________________________________________________________________________________________
Marking Method

High-Speed Galvanometer Scanning
Marking Speed

≤8000 mm/s
Scanning Speed (Idle)

≤12000 mm/s
Marking Accuracy

±0.001 mm
Repeatability

±0.0008 mm
Minimum Line Width

0.005–0.01 mm
Minimum Character Size

0.1 × 0.1 mm
Max Marking Depth

Up to 0.5 mm (varies by material and repetition rate)
Surface Roughness

Ra ≤ 0.6 µm
Software & Electronics

___________________________________________________________________________________________________________
Control Software

EZCAD2 / EZCAD3 / Custom SDK Integration Available
Compatible OS

Windows XP / 7 / 10 / 11
File Format Support

AI, PLT, DXF, BMP, JPG, PNG, SVG, TTF, SHX, QR, DataMatrix, Code128, etc.
Communication Interface

USB 2.0 / RS232 / Optional Ethernet
Automation Interface

I/O Ports for Conveyor, Sensors, PLC Integration
Real-Time Preview

CCD Camera with Visual Positioning Overlay (optional)
Electrical & Cooling

___________________________________________________________________________________________________________
Input Voltage

AC 110V / 220V ±10%, 50/60Hz, 15A
Power Consumption

500 – 700 W (typical)
Laser Source Cooling

Advanced Air Cooling System (no water chiller required)
Galvo & Optics Cooling

Integrated Fan and Heat Sink Technology
Environmental Protection

Anti-Static, EMI Shielded Electrical Cabinet
Environmental Conditions

___________________________________________________________________________________________________________
Operating Temperature

5°C – 35°C
Storage Temperature

10°C – 60°C
Relative Humidity

20% – 80% RH, non-condensing
Machine Noise Level

< 65 dB
Physical & Safety

___________________________________________________________________________________________________________
Machine Dimensions

(L×W×H), 800 × 650 × 1500 mm
Net Weight

160 kg
Housing Material

Powder-Coated Steel + Anti-Vibration Frame
Safety Features

Emergency Stop, Key Switch, Laser Interlock, Door Sensor, Laser Warning Lamp
Advanced Applications

Micro-Engraving on glass, medical plastics, semiconductors, silicon wafers
Precision Etching on UV-sensitive materials: PE, PET, Teflon, FPC
PCB Marking without thermal deformation
QR / UID Marking on coated or heat-sensitive materials
Luxury & Branding: crystal logos, watch dials, smartphone parts
Lifespan (Laser Source)

≥ 150,000 hours
Core components

UV Laser Source
Galvanometer Scanner
F-Theta Lens
Control Board (Mainboard)
Z-Axis Motion System
Power Supply Unit (PSU)
Optical Path Components
Cooling System
CCD Camera (optional)
Safety System Components
Worktable / Fixture
Software Dongle / License
Warranty on core components

2 years
Showroom Location

Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia
After-sales service provided

Online support/ on site support / parts replacement
Delivery & Installation

Free ( T&Cs Apply )
