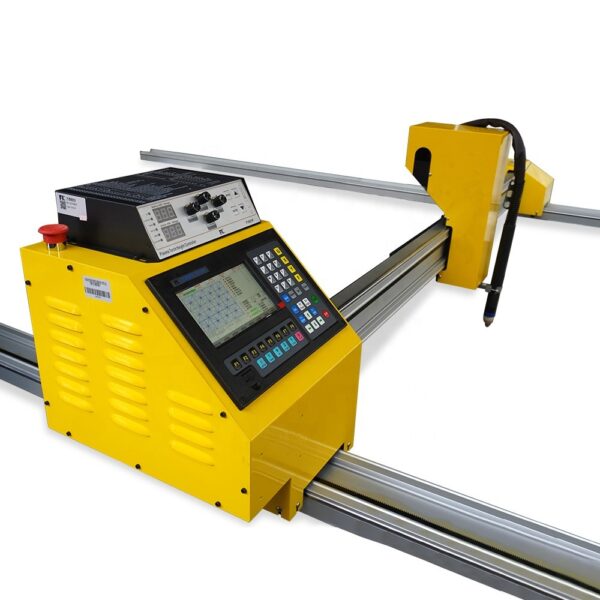

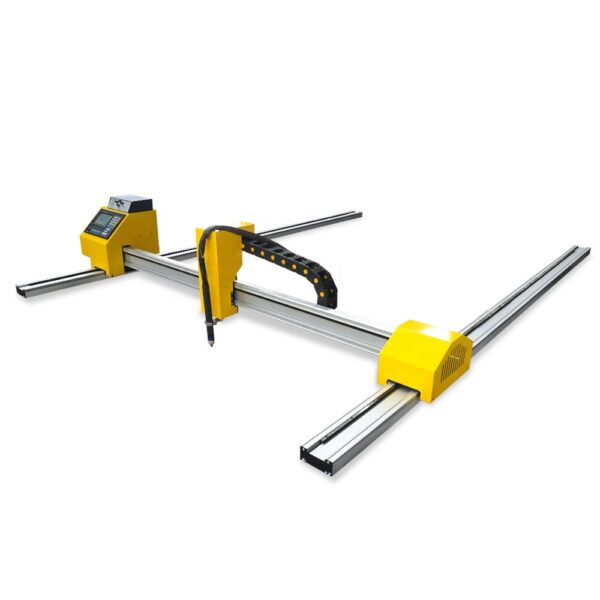

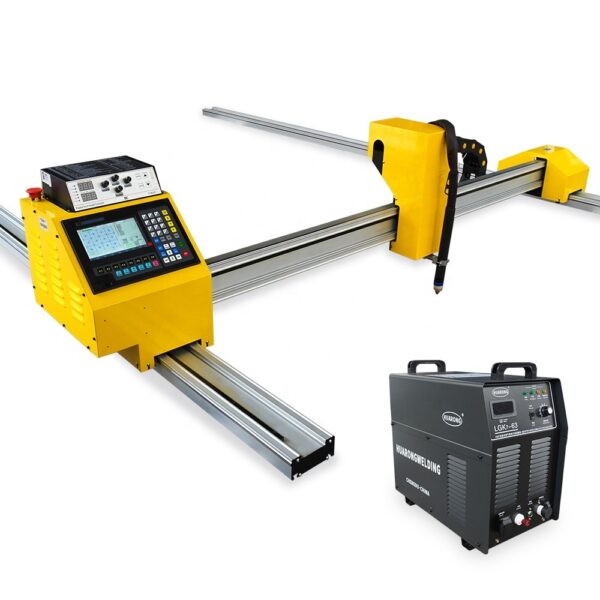

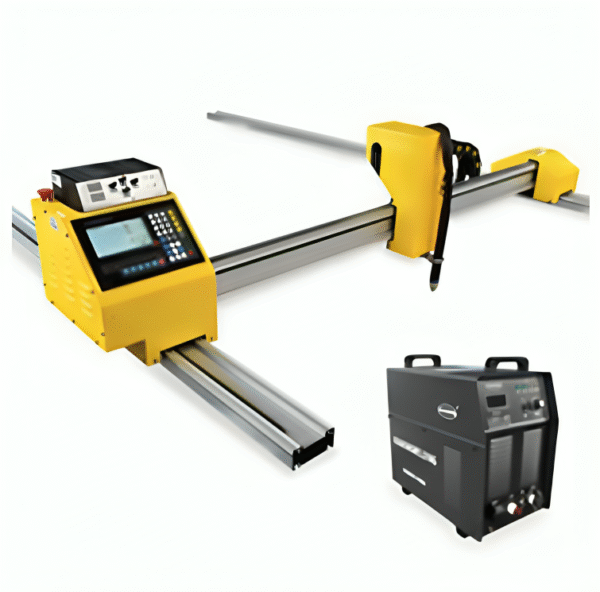

High-Speed Portable Gantry CNC Plasma Cutting Machine for Metal, Steel & Iron – Compact & Precise Cutter at Affordable Price

R30,800.00

Discover our high-speed, portable gantry CNC plasma cutting machine designed for precision cutting of metal, steel, and iron sheets. Ideal for small workshops or on-site fabrication, this compact CNC cutter offers excellent accuracy, efficiency, and affordability. Engineered for ease of use and mobility, it supports a wide range of cutting applications in industries like metal fabrication, construction, automotive, and shipbuilding. Available at competitive prices with customization options.

Key Features:

  • Simple, user-friendly operation with multi-language support.

  • Built-in library of 46 graphics (including grid patterns), with editable part and hole dimensions.

  • Supports G-code and popular nesting software: FastCAM, FreeNest, SmartNest, IBE. File types: .TXT, .CNC, .NC, .MPG, .B3, and more.

  • Full editing suite: scale, rotate, mirror; arrange in matrix, stack, or interactive layouts.

  • USB flash drive upgrades supported, with lifetime free software update service.

  • Online upgrade support for full system functions – no downtime or service delay.

  • Supports both single and batch import/export of cutting files.

  • Cutting mode support: oxy-fuel, plasma, powder spraying, demonstration mode.

  • Oxy-fuel: auto-tuning, dual preheating, three-stage piercing.

  • Plasma: arc pressure feedback, positioning feedback, automatic arc-off at corners.

  • Dual-mode plasma arc control: speed-based and distance-based adjustment.

  • Edge cutting reduces preheating time on thicker steel plates.

  • Auto-corner speed control to prevent over-burning on thick materials.

  • Manual start-line or pierce-point selection for precision jobs.

  • Live dynamic/static graphic display with real-time zoom and tracking.

  • DSP-based interpolation control ensures smooth, quiet, high-speed motion.

  • Adjustable lift speed, start speed, and lift delay.

  • Power-loss recovery and breakpoint memory function included.

  • Offset cutting” prevents material waste due to incorrect nesting calculations.

SKU: NR7T39UJ Category: Tag:

Additional information

Condition

New

Applicable Industry

Metal Fabrication
Construction
Automotive
Shipbuilding
HVAC Manufacturing
Agricultural Equipment
Machinery Repair
Steel Structure Manufacturing
Custom Metal Art
Industrial Equipment Production

Model

TR-S1190

Machine Type

Modular Portable Gantry CNC Cutting System

Model Variants

2000×3000 mm, 2000×6000 mm, 3000×6000 mm (custom sizes up to 4000×12000 mm)

Application

Plasma Cutting (0–30 mm), Flame Cutting (30–250 mm)

Installation Method

Portable Base / Ground Rail Fixing / Mobile Skid System

Modular Design

Yes – Field Assembly and Expansion Ready

Paint & Coating

Powder-Coated + Zinc Primed Anti-Corrosion Finish

Machine Weight

264kg

MECHANICAL FRAME

________________________________________________________________________________________

Frame Material

Q345 Steel with Precision Machining

Beam Material

Aviation-Grade Aluminum (6061-T6), Ribbed and Heat-Treated

Rails

20/25 mm Linear Guideways with Dust Covers (PMI / Hiwin Compatible)

Rack & Pinion System

Hardened Helical Gear (Mod 2.0) – Precision Ground & Anti-Backlash

Z-Axis Movement

Ball Screw Drive with Electric Motor Lift + Limit Switches

MOTION CONTROL SYSTEM

_____________________________________________________________________________________

X/Y Motion

Bilateral Stepper Motors (closed-loop optional) with Synchronized Drives

Z-Axis

Motorized Torch Lifter with Feedback & End-Limit Sensors

Drive Technology

Microstepping Motor Drivers with DSP Controller

Servo Option

Available (Delta / Yaskawa / Leadshine Closed-Loop)

Gearbox

Precision Planetary Gearboxes (Backlash ≤ 5 arcmin)

Positioning Accuracy

±0.2 mm/m

Repeatability

±0.1 mm

Max Idle Speed

12,000 mm/min

Max Plasma Cut Speed

Up to 8,000 mm/min

Max Flame Cut Speed

Up to 1,000 mm/min

CUTTING SYSTEM

________________________________________________________________________________

Plasma Thickness

0–30 mm (depends on plasma power supply)

Flame Thickness

30–250 mm (oxygen + acetylene/propane)

Max Piercing Thickness

Plasma: ≤20 mm
Flame: ≤150 mm

Edge Quality

ISO 9013 Class 2–4 (Plasma), Class 1–3 (Flame)

Flame Torch

Manual/Auto Lifting, Auto-Ignition, Dual Fuel Compatible

Plasma Torch Lifter

Arc Voltage Height Controller (THC) + Capacitive Initial Height Sense

Torch Collision Sensor

Magnetic Breakaway with Auto Emergency Stop

CONTROL SYSTEM

_________________________________________________________________________________

Interface

LCD Color Display (7" or 10") – Push Button or Touch

Language Support

English, Spanish, Russian, French, Arabic, Chinese, and more

Input Format

USB, U-Disk, Optional LAN / RS232

Supported Files

G-code, DXF, NC, ESSI, PLT

Auto Nesting

FastCAM (Standard/Pro), optional StarCAM, IBE, or SheetCAM

Nesting Features

Lead-In/Out, Kerf Compensation, Array, Mirror, Bridge Cut, Gap Close

Offline Programming

Yes – with simulation

ELECTRICAL SYSTEM

_____________________________________________________________________________

Input Power

AC 220V/1P or 380V/3P ±10%, 50/60 Hz (customizable)

Power Consumption

≤300W (Excluding plasma source)

Plasma Compatibility

Huayuan, Hypertherm (Powermax, MAXPRO), LGK, Kjellberg, ESAB

EMC Shielding

Industrial-Level Protection for Signal Lines

GAS SUPPLY SYSTEM (FLAME)

_____________________________________________________________________________

Oxygen Pressure

0.7–1.5 MPa

Fuel Gas Pressure

0.1–0.2 MPa (Acetylene / Propane)

Regulator Included

Yes – Dual Pressure with Gauges & Hoses

Core components

CNC control system (including control screen)
Motors and drivers
Plasma power supply
Torch height controller (THC)
Guide rails and drive system
Electrical components
Torch assembly

Warranty on core components

2 years

Showroom Location

Egypt, South Africa, France, Peru, Indonesia, Spain, Kenya, Germany, Sri Lanka, Ukraine, Turkey, Jordan, Ireland, Australia

After-sales service provided

Online support/ on site support / parts replacement
