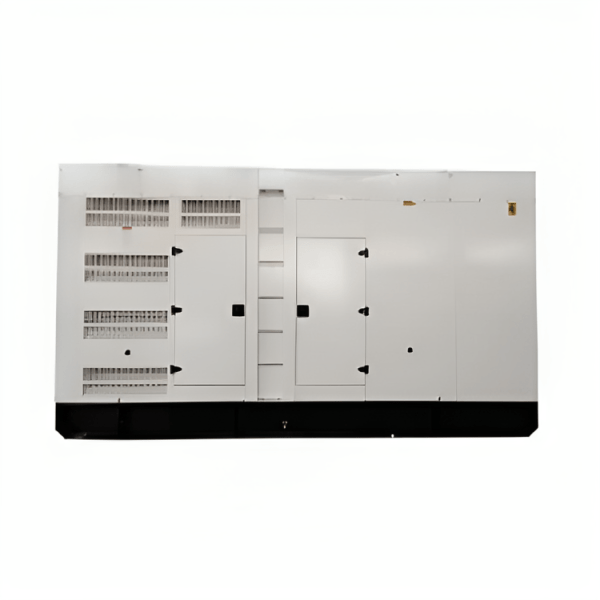

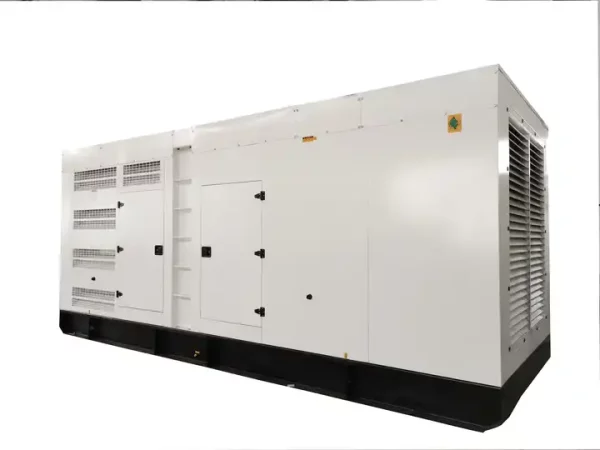

Name: Industrial Silent 1000kVA Diesel Generator With Cummins Engine.
SKU: RN5W8VQ
Availability: InStock

R1,130,000.00

SKU: RN5W8VQ Categories: 1000kVA Diesel Generators, Diesel Generators

Additional information

Generator set model	TPT3013D1
Generator Prime Power	1000kVA
Generator Standby Power	1100kVA
Rated frequency	60HZ
Rated voltage	400/230V (Can be adjusted)
Rated speed	1500RPM
Fuel consumption	67.35L/h
Open type size	3000x1050x1850 mm
Open type weight	2750 Kg
Engine model:	BF6M1015CLAG3A
Engine brand	DEUTZ
Engine speed	1500RPM
Bore & Stroke	132×145 mm
Displacement	11.9L
Type	V-Type,6 cylinders,4 stroke
Aspiration	Turbocharged & Intercooled
Governor	Mechanical/Electronic
Alternator model	HCI 444ES
Alternator brand	STAMFORD
Frequency	60HZ
Speed	1500RPM
Voltage	400/230V (Can be adjusted)
Power factor	0.8 (lagging)
Phase and wire	3 phase 4 wires
Excite type	Single Bearing, Close coupled. Brushless, self-exciting,AVR
Protection class	IP23
Insulation class	H
