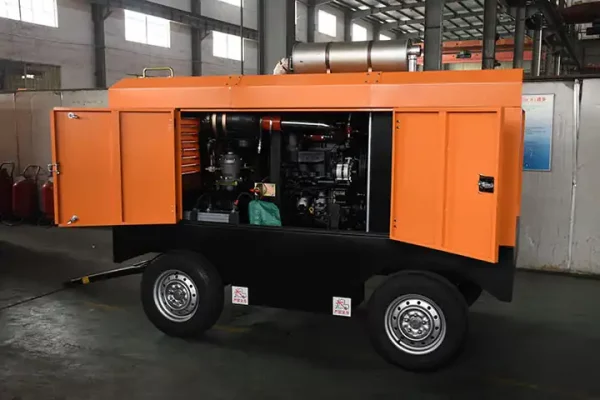

Name: Kaishan KSZJ-18- 15Bar Diesel Engine Air Compressor With Computerised Control System.
SKU: Z99XM1P
Availability: InStock

R169,000.00

SKU: Z99XM1P Categories: Diesel Air Compressor, Industrial Equipment

Additional information

Condition	New
Model	Kaishan KSZJ-18/172 Diesel Engine Air Compressor
Applicable Industries	Workshop, Warehouse, Factory, Storage, Shop, Retail, Construction Work, Transportation, Water Well Drilling, Other
Air Capacity (m³/min)	17 15
Working pressure (MPa)	1.5 1.2
Weight (KG)	2200
Dimensions (mm)	3020×1520×2180
Tire size × quantity	6.50-16×4
Manufacturer	YuChai
Diesel Engine Model	YC6J190-H300
Type	In-line
Inhalation method	Turbocharged
Cylinder × diameter×stroke×number of cylinders	105×125×6
Displacement (L)	6.494L
Rated Speed (r/min)	2200
Unloading speed (r/min)	1400
Rated power kW (HP)	140
Volume of Diesel oil (L)	15
Volume of Fuel oil (L)	150
Electrical system voltage (V)	24
Air compressor	………………………….
Air-End model	KAISHAN SKKE152 (Design in USA)
Compression stages	1
Compressor oil capacity (L)	36
Supply valve Specification × quantity	G2×1，G3/4×1
Drilling rod	76*3000 mm
Dust collecting method	Dry type (hydraulic cyclonic laminar flow)
Core Components	PLC, Engine, Motor, Bearing
Warranty of core components	1 Year
After-sales Service Provided	Online support/ on site support / parts replacement
Warranty	1 Year
Delivery	Free
